description

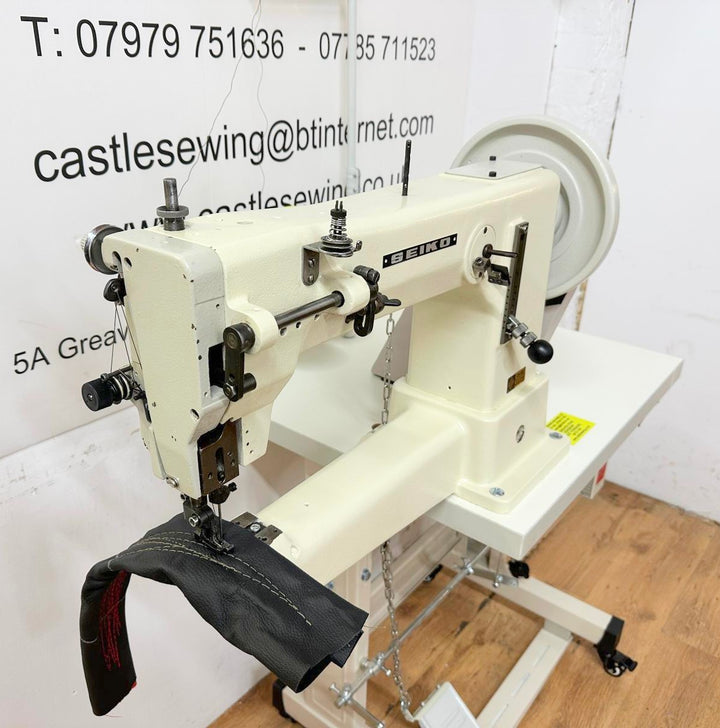

Seiko CH8B Extra Heavy Cylinder Arm Walking Foot fully refurbed new paint and parts where needed, fitted on new wheeled stand new 750w servo motor and new top,

Seiko CH-8B extra heavy duty, single needle, cylinder bed lockstitch sewing machine with bottom feed, needle feed, walking foot top feed and extra large capacity shuttle hook for use with heavy weight materials & thick sewing threads.

Suitable for sewing material such as canvas, plastics, leather etc.

Features a long arm cylinder bed shape with 400mm clearance to the right of needle and a powerful triple feed action for sewing heavy weight materials.

Maximum Stitch length
10mm
Needle bar stroke
56mm
Maximum thread size
up-to #8
Needle
Type: DYx3  Size: 180 - 230
Presser foot lift
10mm by hand, 25mm by knee / foot
Vertical working space
up-to 200mm
Horizontal working space
up-to 400mm
Maximum speed
800spm



Click PDF Brochure PDF






+ Show More
Payment & Security
apple paygoogle payvisamasteramerican expressdiscoverdiners clubmaestropaypal
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Seiko CH8B Cylinder Arm Walking Foot

$3,557.00

Excl.Vat

Availability : In Stock Pre order Out of stock
Quantity:
