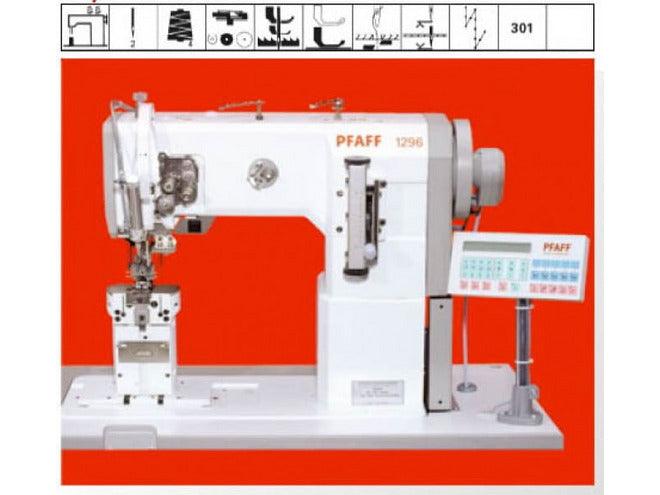

Pfaff 1296 Twin Needle Walking Foot Post Bed Machine

Brand New Pfaff 1296 Twin Needle Walking Foot Post Bed Machine; Special features:

• Unobstructed view of the stitching area
• The postbed design is ideal for handling shaped parts before or after they are closed
• Trouble-free stitching over cross-seams with no difference in stitch length, due to the alternating top feed with 7 mm stroke
• Accurate and consistent stitch formation on all materials, up to thread sizes of 15/3-ply, synth.
• Uncomplicated mechanical system guarantees perfect function
• Built-in bobbin winder within operator’s view
• Large vertical hook with 60% more thread capacity than conventional hooks
• Protection of the hook against thread jamming by built-in and easy-to-handle overload clutch as standard equipment
• High sewing output and easy operation due to time- and cost-saving work aids, such as:
  • Thread trimmer
  • Automatic presser foot lift
  • Backtacking mechanism
  • Needle positioning mechanism
• Large fabric clearance of 14 mm for easier loading and removal of the workpiece
• As an alternative available with a long stitch (up to 11 mm) for rustic stitching
• Please inform us with what needle gauge you require.

SUB CLASS; -6/01   For plain seaming operations -63/14 Fancy- and top-stitching operations, also on one-sided bulky cross-seams; compensating presser with seam guide, tape guide from below -63/15 Fancy- and top-stitching operations, also on one-sided bulky cross-seams; compensating presser, pneumatically operated, engageable middle seam guide and tape guide from below Models and Work aids from the PFAFF 1296 C For medium to heavy materials L Leathers S Fabrics M Overload clutch for protection of hook N Max. stitch length 6 mm, forwards and reverse P Four-motion drop feed version Work aids: -900/56 Thread trimmer -911/97 Automatic presser foot lift and backtacking (for operation a pneumatic air filter/regulator is required, Pfaff part No. 91-187 426-70/893)
