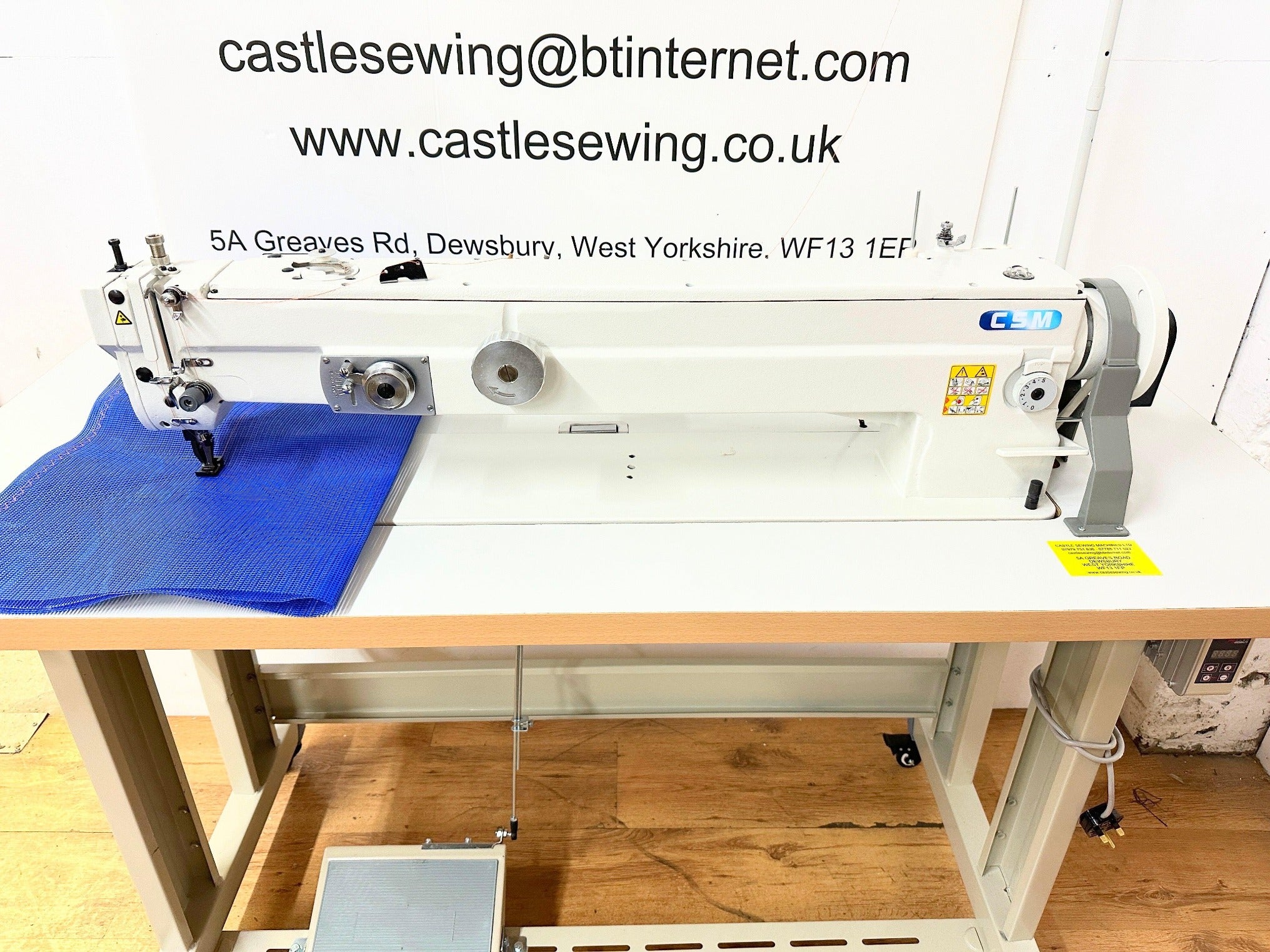

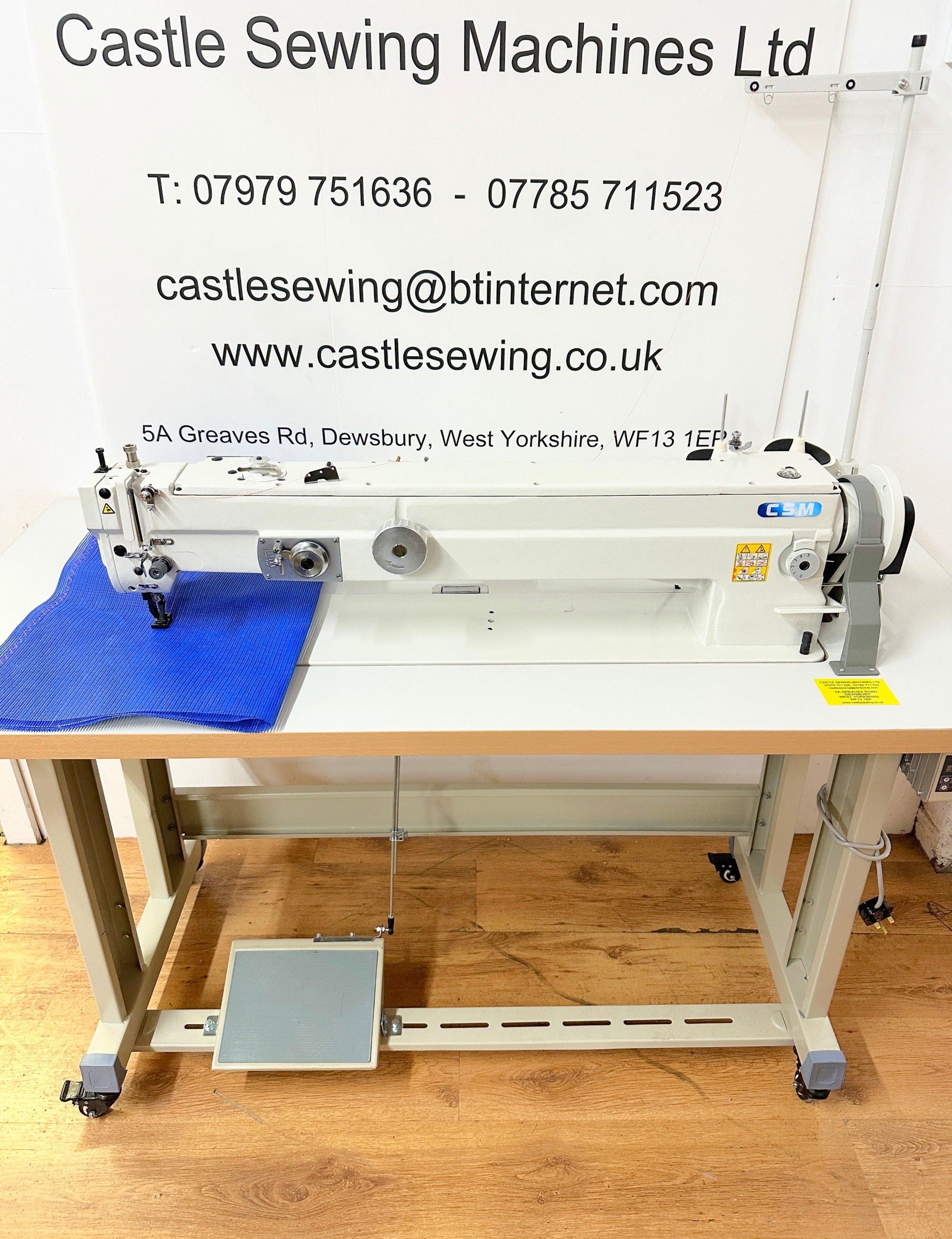

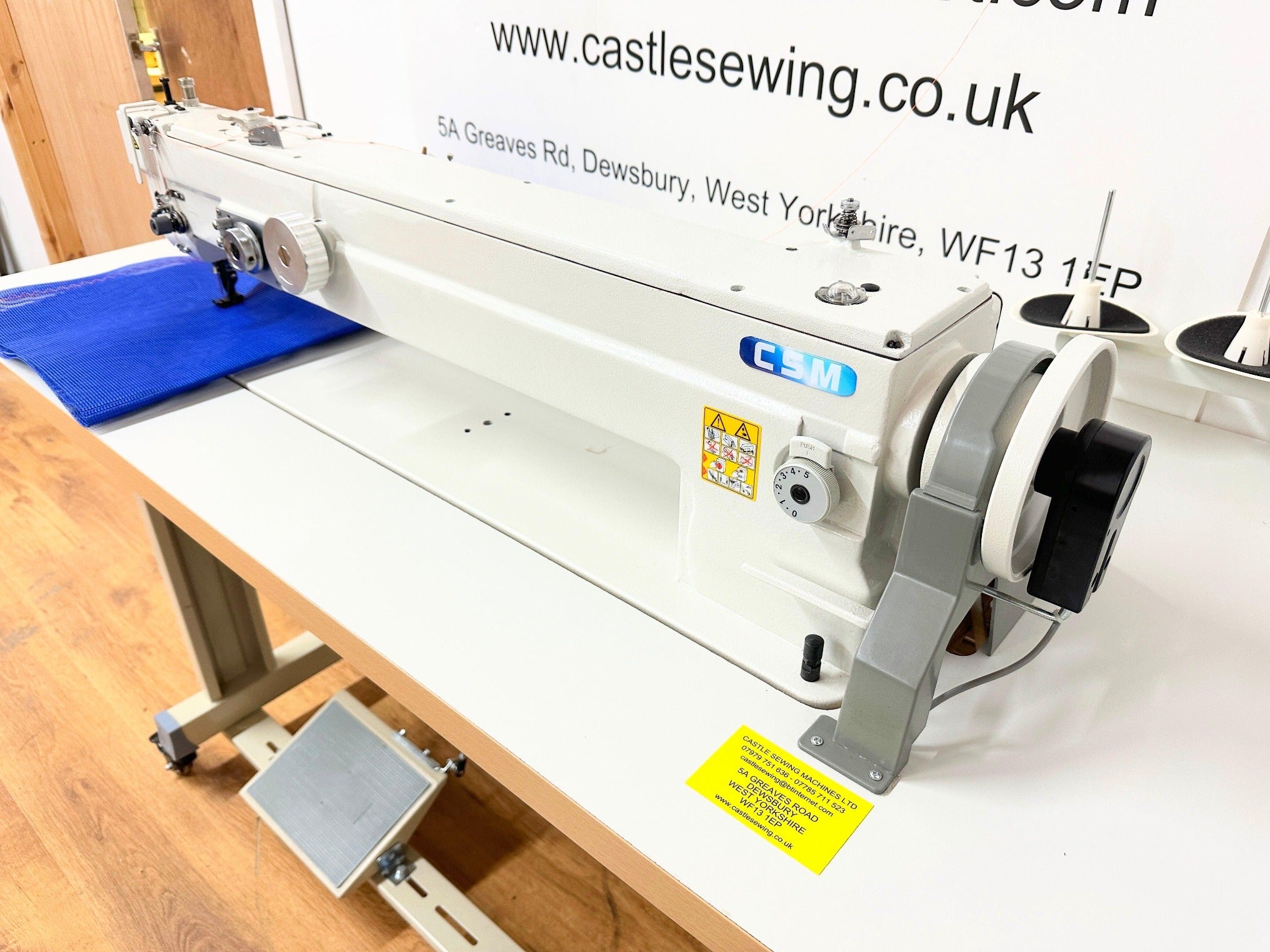

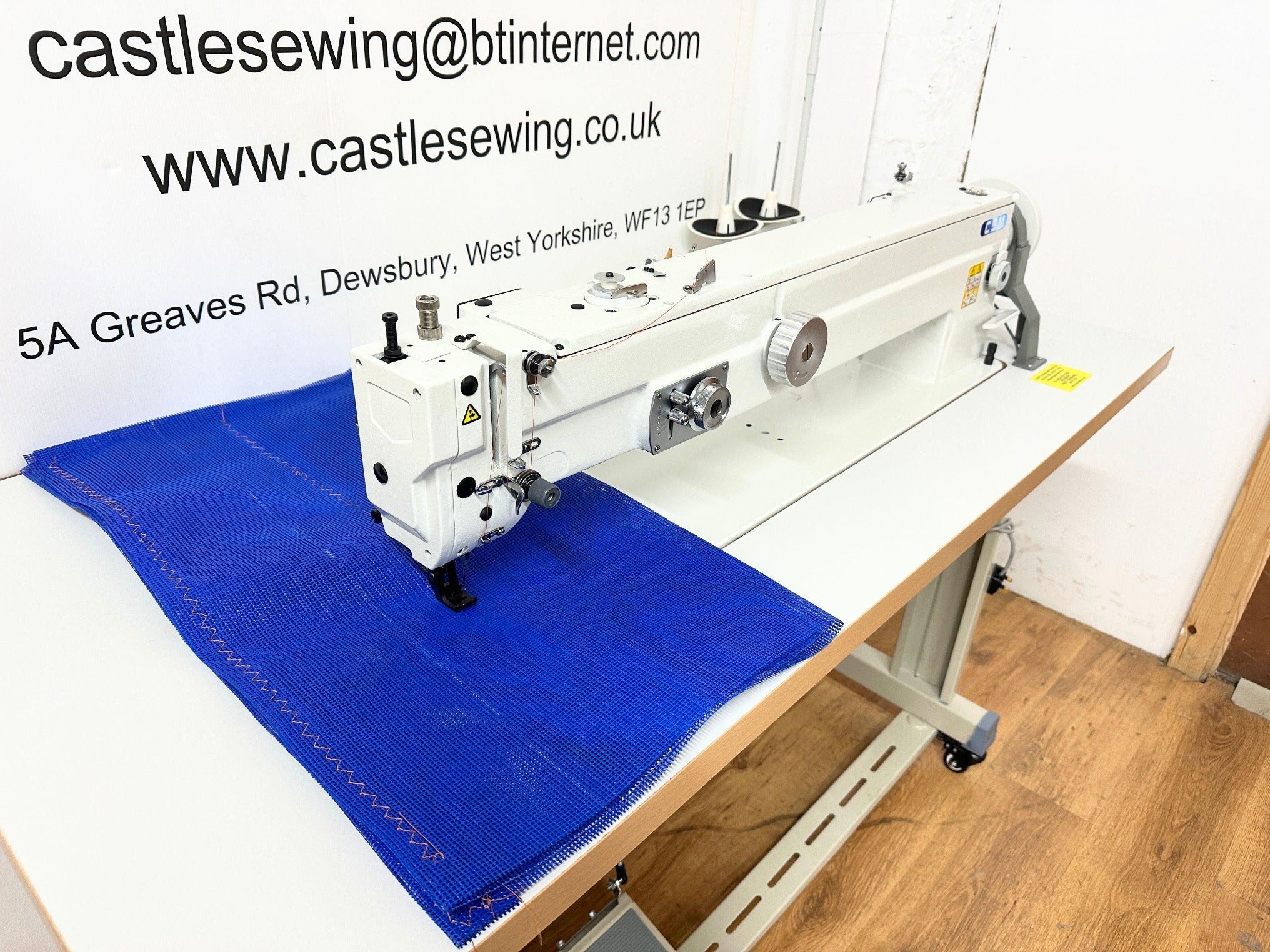

CSM Long arm zig zag walking foot New machine our own brand CSM LONG ARM three step Zig Zag, WALKING FOOT

FITTED ON 800W NEEDLE POSITION SERVO MOTOR AND PNEUMATIC AIR FOOT-LIFT

The silent servo motor sews in almost complete silence, which helps you concentrate fully on your sewing.
Also, it will save you money as the motor does not require much electricity to run

All our machines serviced and are stitched off ready to plug in and work

• For sewing medium to heavy weight materials such as sails, mattress labels, upholstery fabrics, leather, vinyl, canvas, synthetics, laminated and coated products.

• Suitable for sewing products made of wider pieces of material such as covers, awnings, insulation panels, automotive and marine upholstery, furniture upholstery, etc.

  FEATURES:

  • 30" Long Arm idealy suited for larger panels of materials

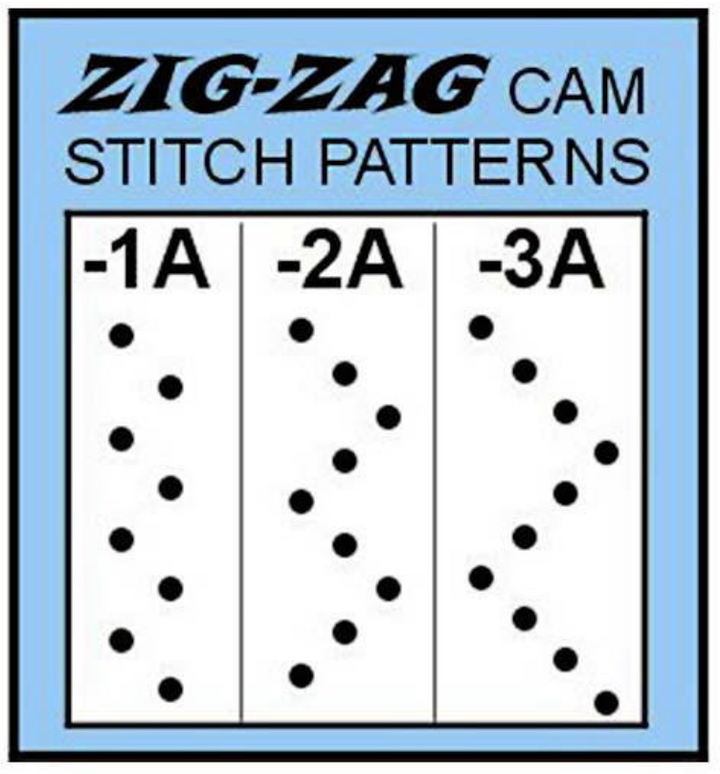

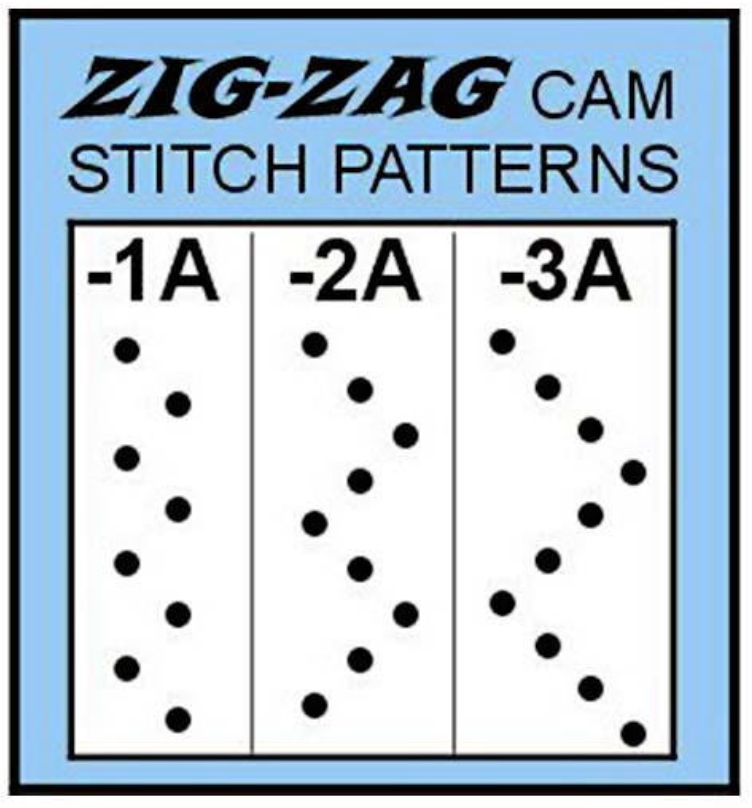

  • WALKING FOOT ZIG ZAG three step
  • Reverse
  • Adjustable Stitch Length to 5 mm
  • Adjustable Stitch Width to 10 mm

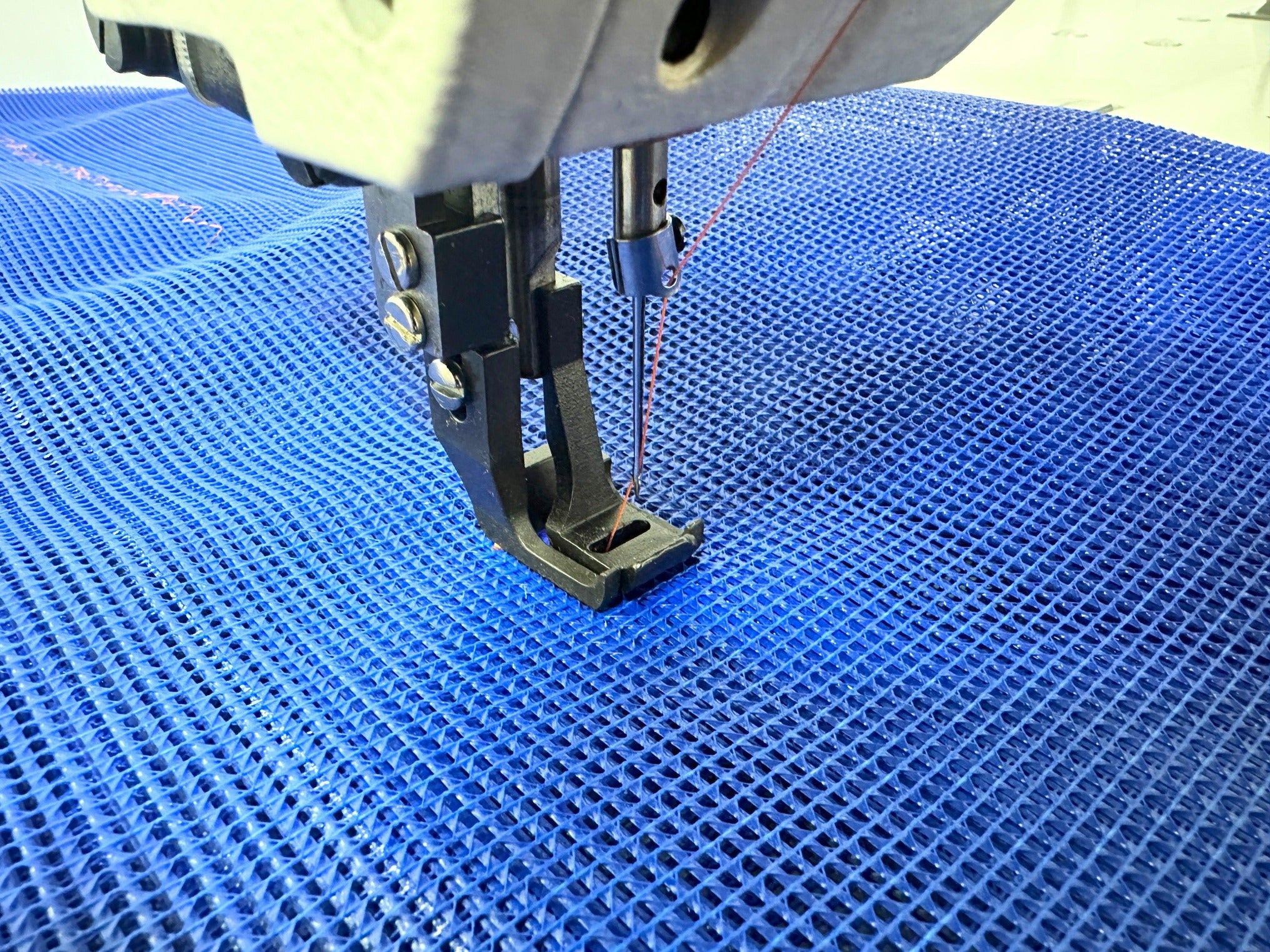

  • Walking Foot Triple Feeding - Top Feed, Bottom Feed.
  • Air Foot Lift you will need a compressor
  • APPLICATION:  For Medium to Heavy Materials
  • MAX SEWING SPEED:  2,500 SPM
  • MAX STITCH LENGTH:  5 mm Forward/Reverse
  • MAX ZIG ZAG STITCH WIDTH: 10 mm
  • FOOT LIFT:  12 mm by Knee, 9mm by Hand
  • HOOK:  Large Hook / BIG Bobbin
  • NEEDLE:  135x17
  • STITCH LENGTH / WIDTH CHANGE METHOD:  By Dial

  All our machines are serviced and stitched off ready to plug in and work

  You can either order this machine online and it will be shipped to you on a pallet or you can come and pick up, either way this machine will be set up and ready to use

  Why buy from Castle Sewing Machines Ltd
  A family company you can trust established 1983
  Large range of new and used machines,

  All our machines carry a RTB parts and labour warranty,

  We only sell heavy duty machinery so our knowledge runs deep,

  Only a phone call for any technical support and we will get you going regardless of problem

  Showrooms for demonstrations

  We sell world wide and have shipped our machinery all over Europe and the world, Australia.USA,Ascension Islands,Ghana,West Indies to name but a few

  • Click PDF
