description

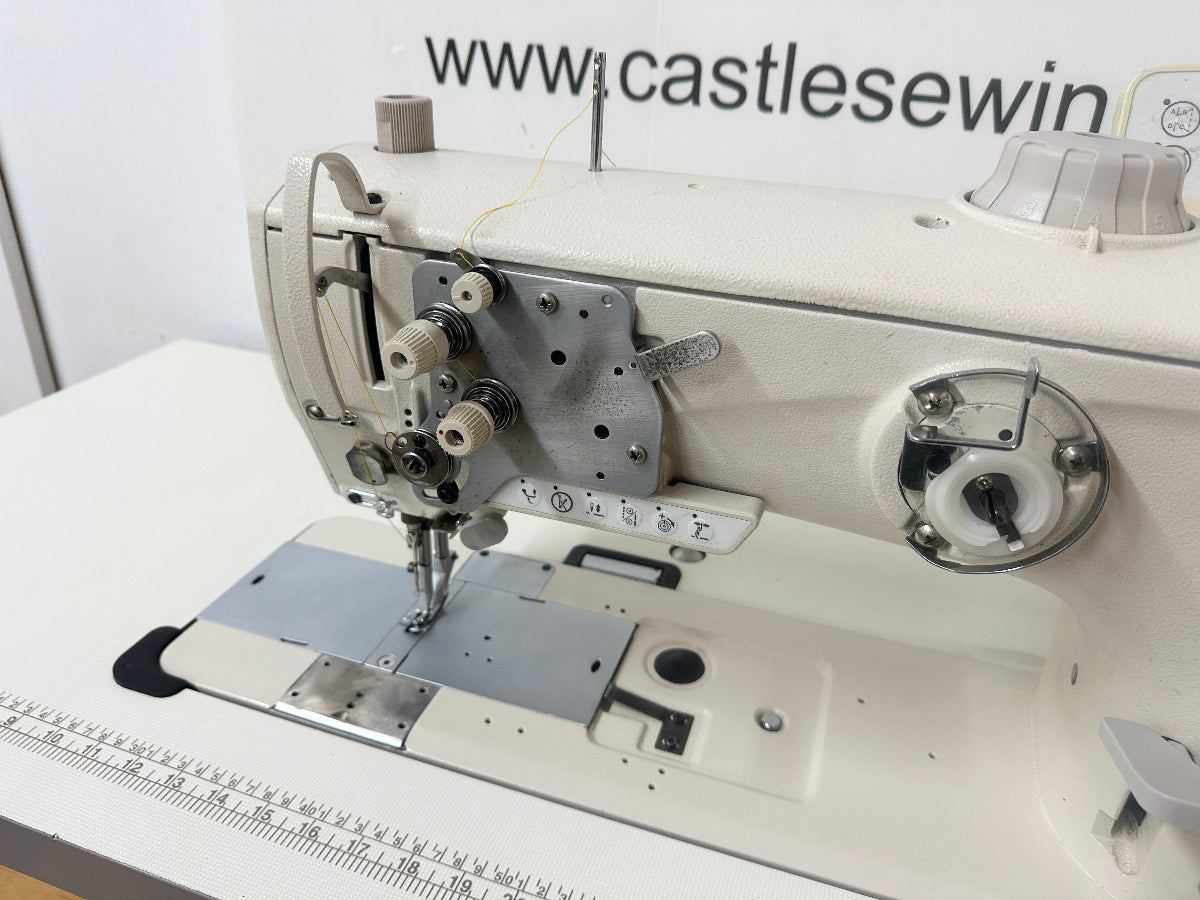

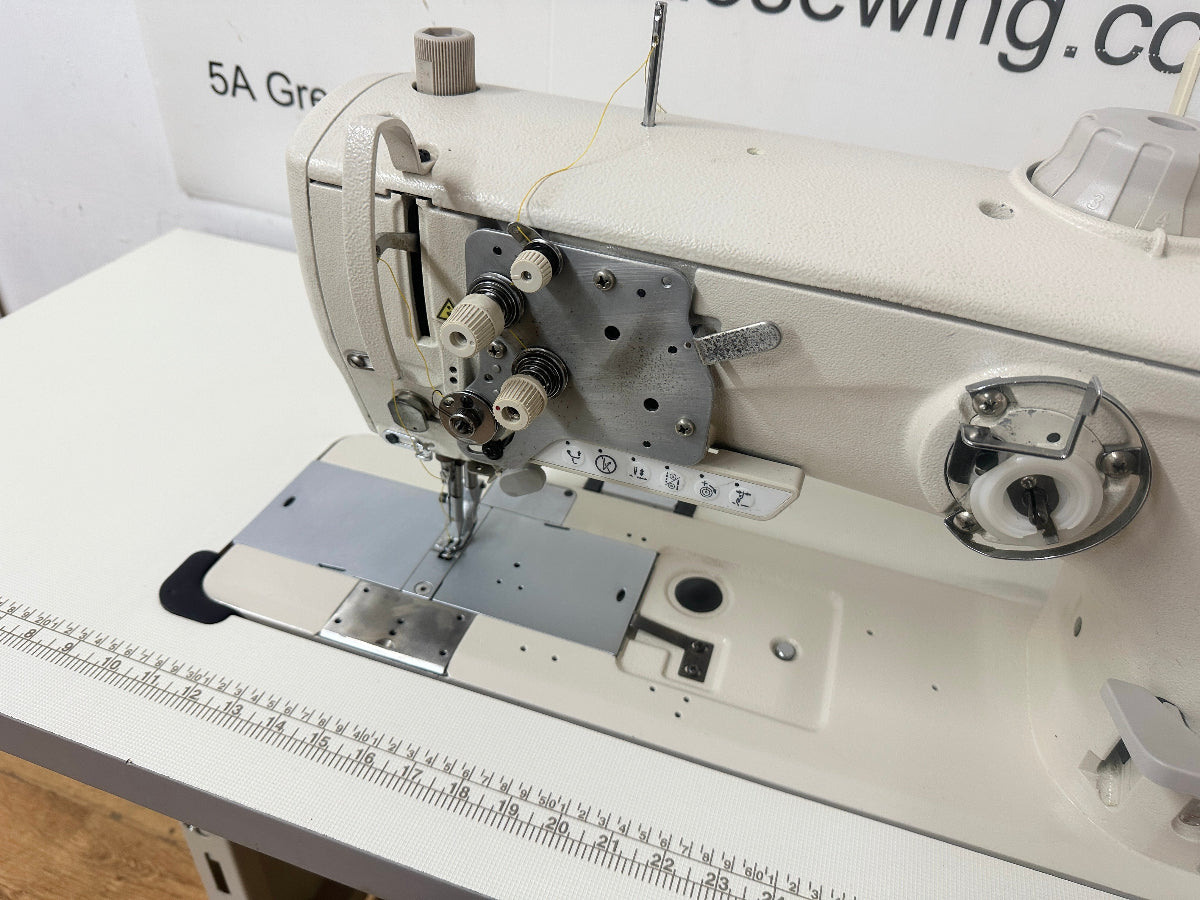

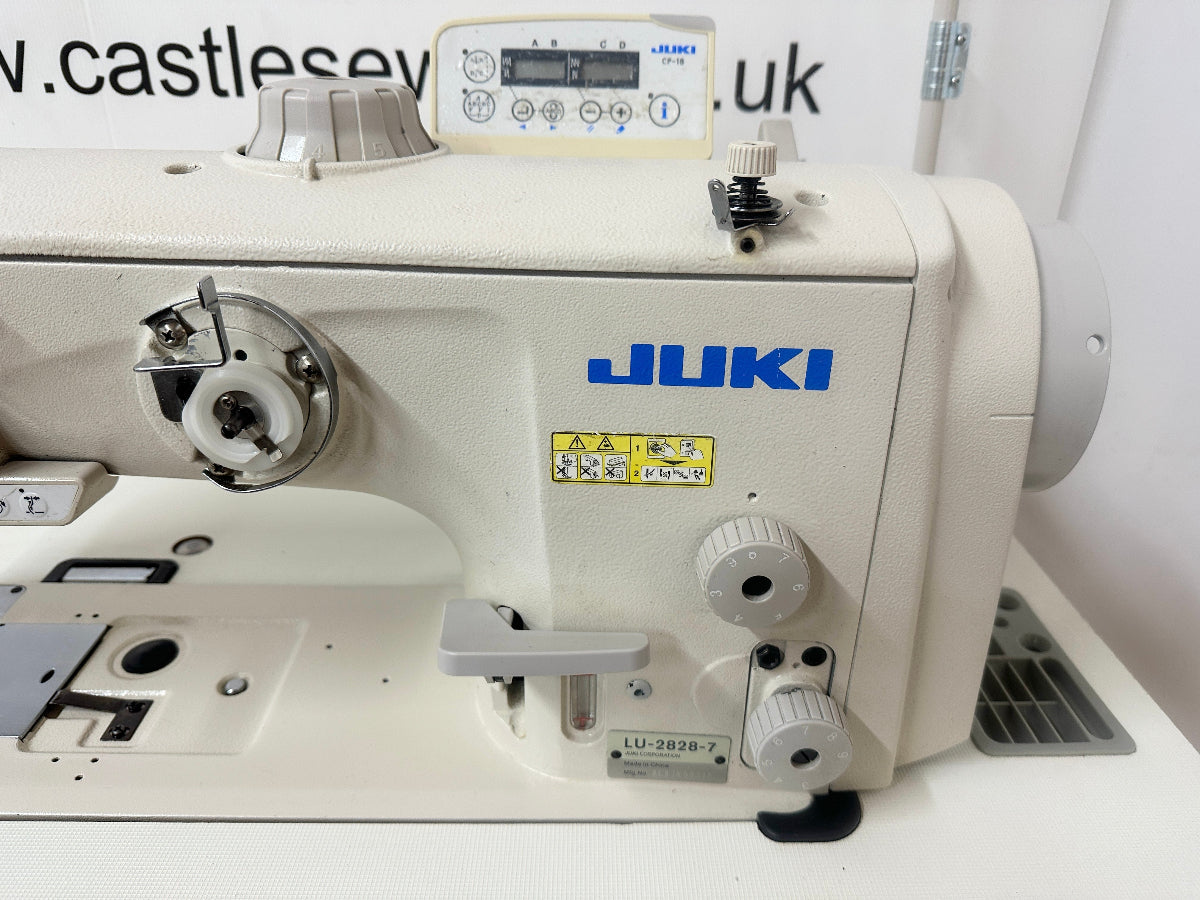

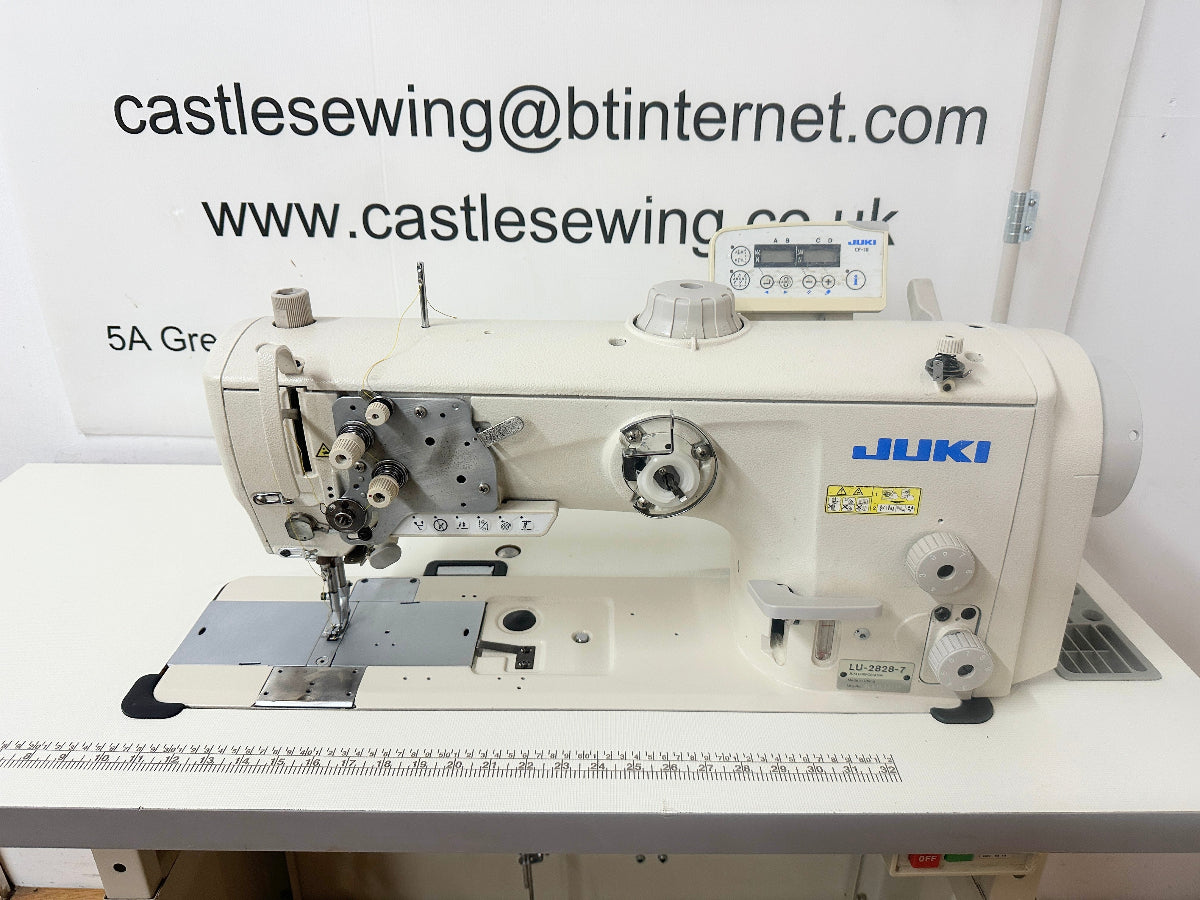

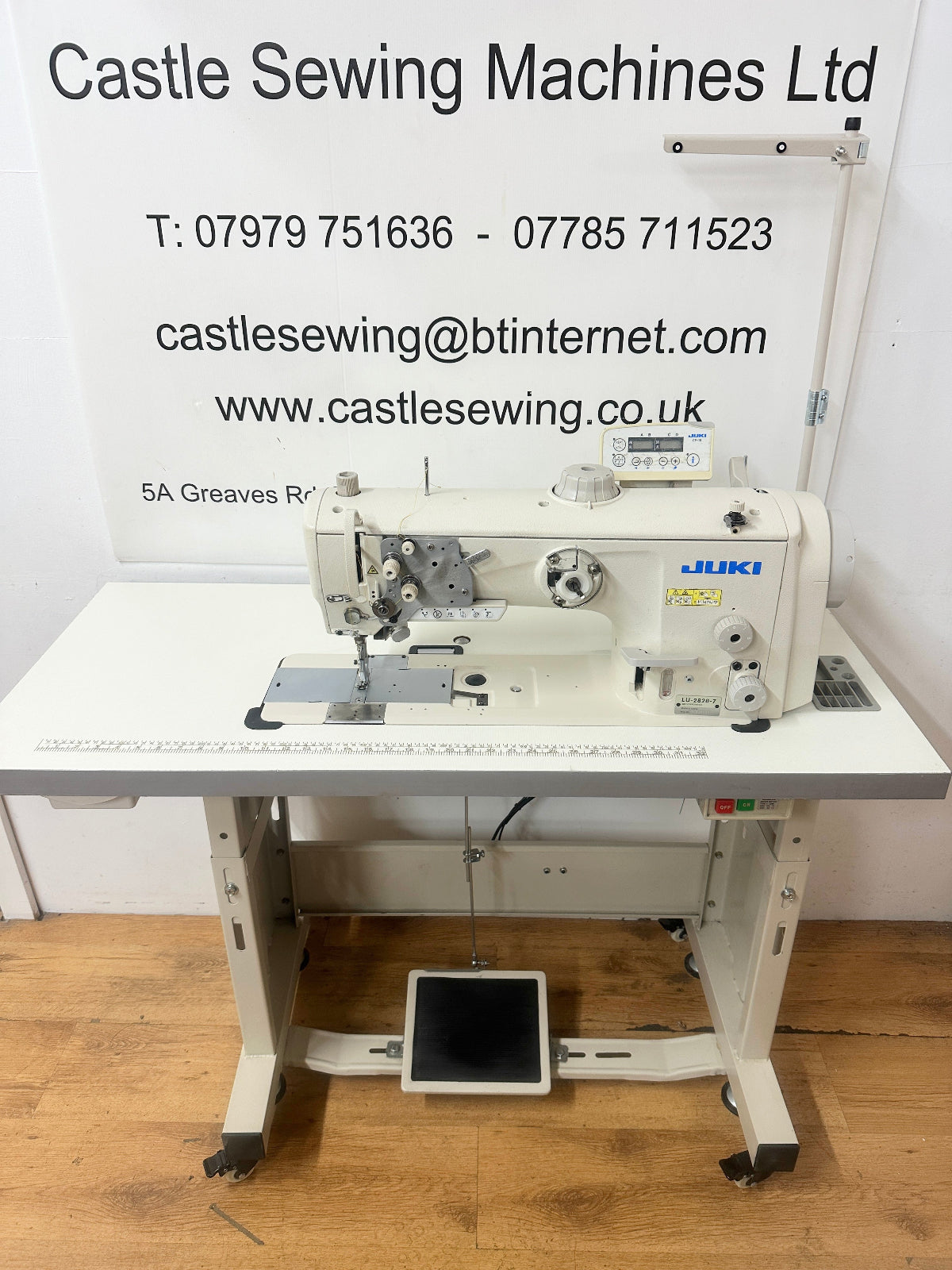

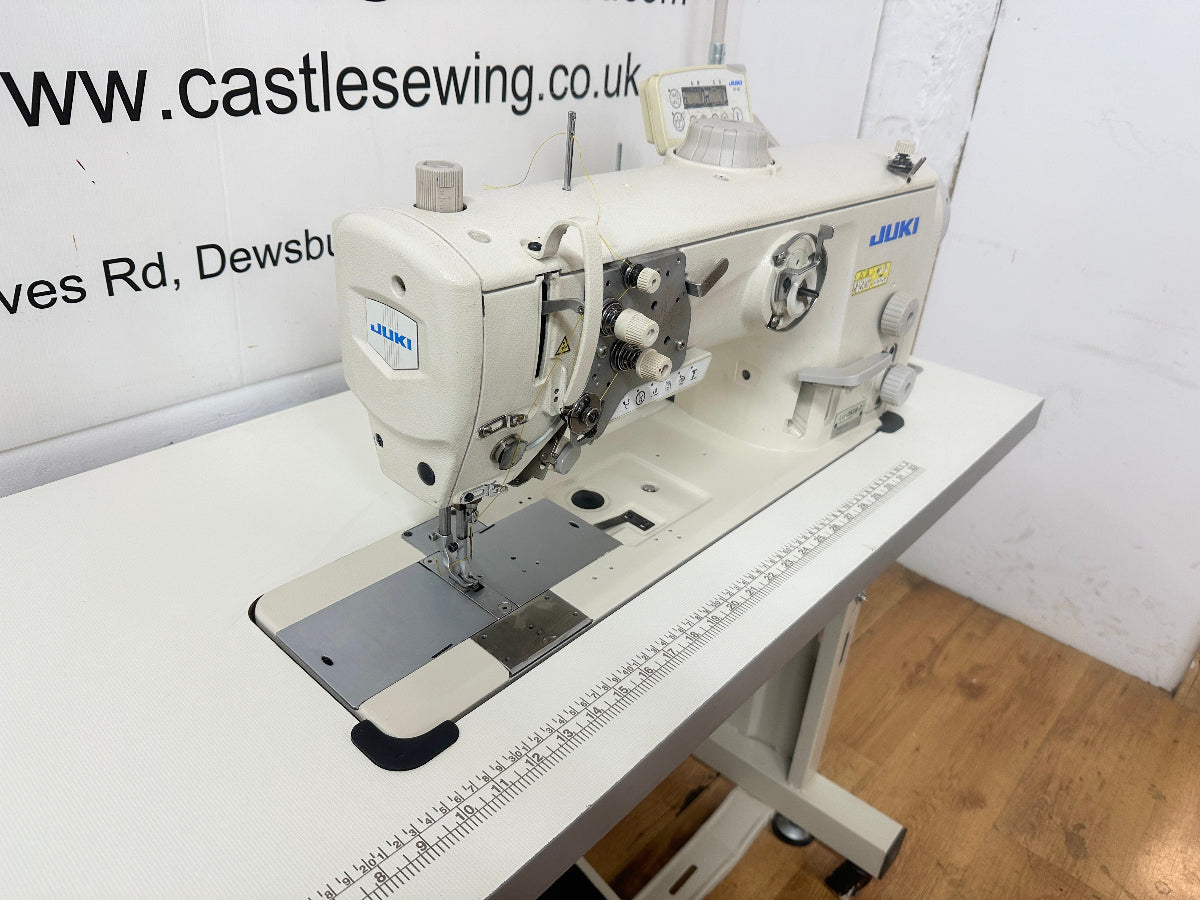

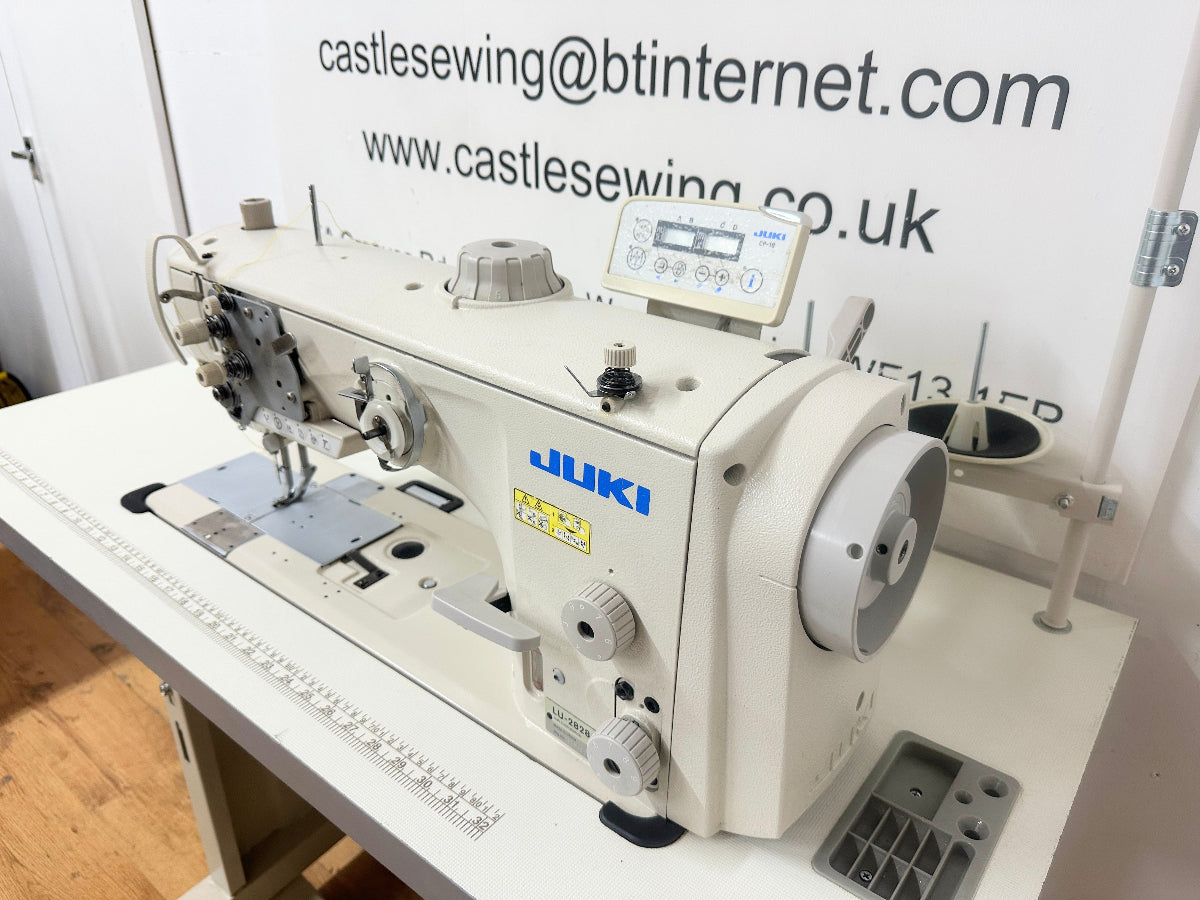

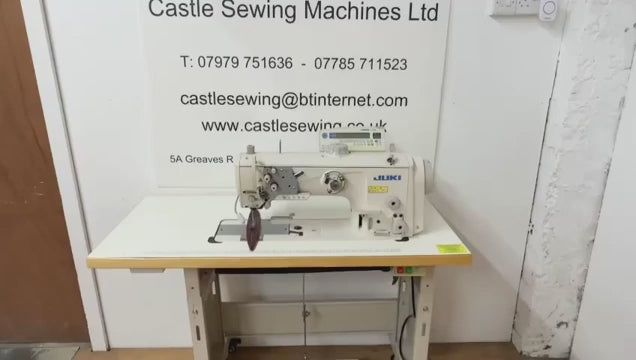

Used Juki 2828-7 Walking Foot Fully Automatic

For sewing leather products, car trimming upholstery, canvas etc

The shorter-thread remaining type LU-2828A-7 . It leaves a shorter thread on the material  as well as the end of the sewing by means of the thread trimmer which is provided with a shorter-thread remaining function. This means that manual thread nipping both at the beginning and at the end of sewing is no longer required,

A presser bar height of 20 mm is achieved when using the automatic presser bar lifting lever.

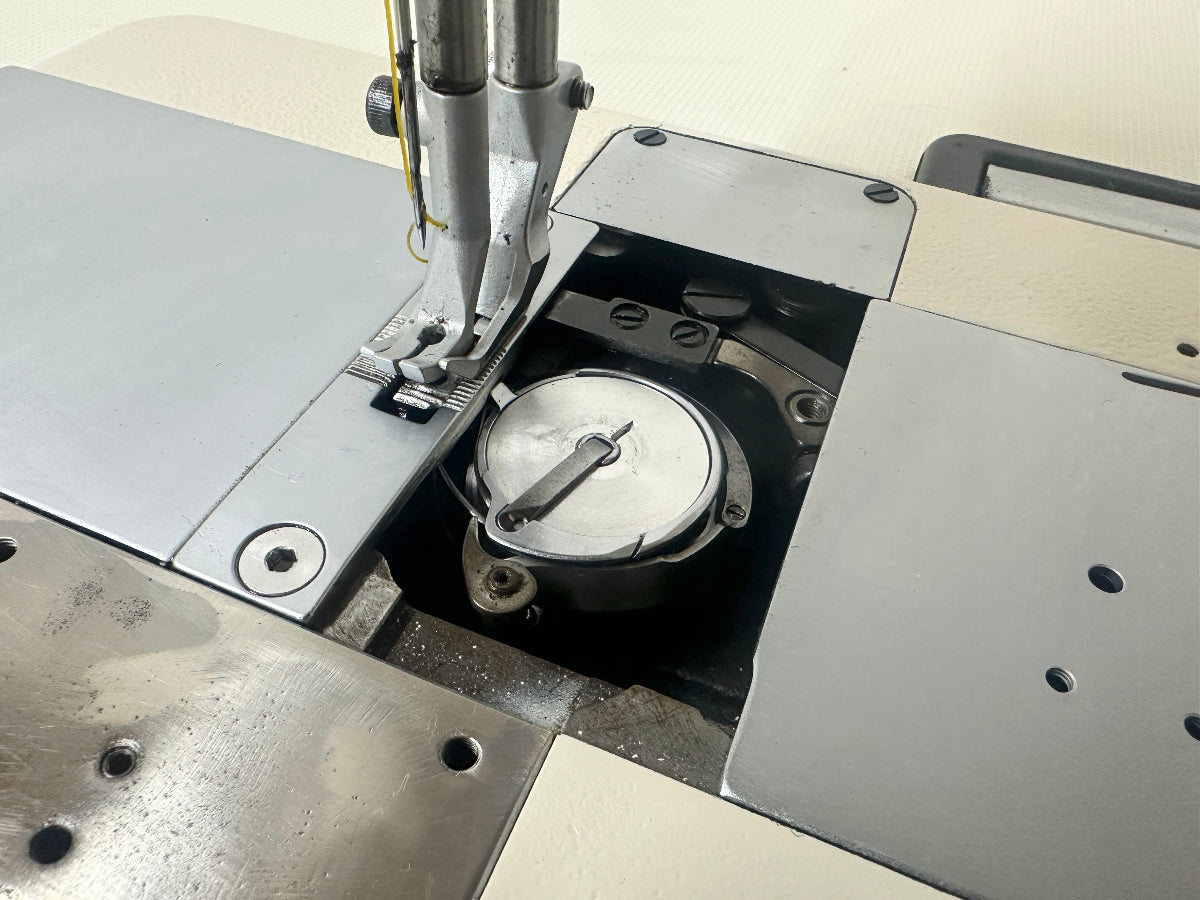

2.0/2.7 fold-XXL capacity hook 32mm

Specifications

Model name

LU-2828A-7



Type

1-needle,

Vertical-axis 2.7 Fold-Capacity Hook with automatic thread trimmer

(needle thread roll-in and

shorter - thread remaining type)

Max. sewing speed

3,000sti/min*

Max. stitch length

9mm

Stitch length dial

2 pitch dial

Presser foot

Auto: 20mm, By hand: 10mm

Auto lifter

Provide as standard

Alternating vertical movement

1~9mm

Alternating vertical movement adjusting method

Large dial

DL device

Provide as standard

Needle thread tension

Single/Double-tension

Hook

Vertical axis 2.7 fold-capacity hook

Bottom-feed micro-adjustment mechanism

Provided as standard

Needle

134×35 Nm140

(Nm125~Nm180)

Thread

#30~#5, B46~B138, Nm=60/3~20/3

Lubrication

Semi-dry head automatic (Tank system)

One-touch type reverse feed switch

Provide as standard

Hand switch

Multi-functional 6-string switch

Safety mechanism

Provided as standard (reset with the push of a button)

Power requirement /Power consumption

Single-phase 100~120V / 200~240V , 3-phase 200~240V / 180VA (with automatic thread trimmer)



All our machines are serviced and stitched off ready to plug in and work

You can either order this machine online and it will be shipped to you on a pallet or you can come and pick up, either way this machine will be set up and ready to use

Why buy from Castle Sewing Machines Ltd
A family company you can trust established 1983
Large range of new and used machines,

All our machines carry a RTB parts and labour warranty,

We only sell heavy duty machinery so our knowledge runs deep,

Only a phone call for any technical support and we will get you going regardless of problem

Showrooms for demonstrations

We sell world wide and have shipped our machinery all over Europe and the world, Australia.USA,Ascension Islands,Ghana,West Indies to name but a few
