description

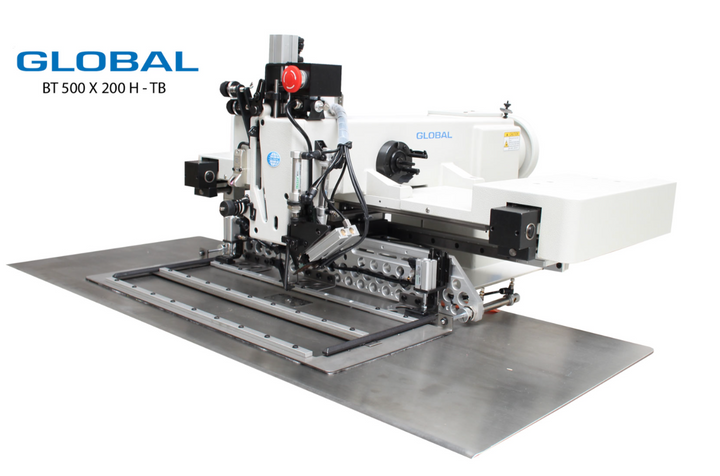

Global BT 500200 H-TB Pattern Stitch

The product specifications for the BT 500200 H-TB :

  • Machine speed: max 800 spm
  • Feeding system: by pulse motor (X-Y)
  • Hook type: large shuttle hook
  • Stitch length: max 10 mm
  • Presser foot lift: max 18 mm
  • Clamp lift: max 18 mm
  • Needle type: DY X 3
  • Seweing range: 500 x 200
  • Power source: 240 v– 1 phase 50-60 Hz direct drive AC servo motor

BT 500200 H-TB
– Extra heavy duty programmable pattern sewer with large shuttle hook and bobbin capacity. This machine is also equipped with automatic thread burners to trim upper and lower thread. Standard equipped with a needle cooling device. This machine is suitable to sew extra heavy materials, such as safety belts, flight cases, cargo straps, luggage and shoesoles. Pattern input by USB. Max sewing size 500×200 mm. Complete with table top, stand and motor.





All our machines serviced and are stitched off ready to plug in and work

You can either order this machine online and it will be shipped to you by pallet or you can come and pick it up.
Either way, this machine will be able to use straight away, no extra set-up will be needed.

Why buy from Castle Sewing Machines Ltd
A family company you can trust established 1983
Large range of new and used machines,

All our machines carry a RTB parts and labour warranty,

We only sell heavy duty machinery so our knowledge runs deep,

Only a phone call for any technical support and we will get you going regardless of problem

Showrooms for demonstrations

We sell world wide and have shipped our machinery all over Europe and the world, Australia.USA,Ascension Islands,Ghana,West Indies to name but a few
