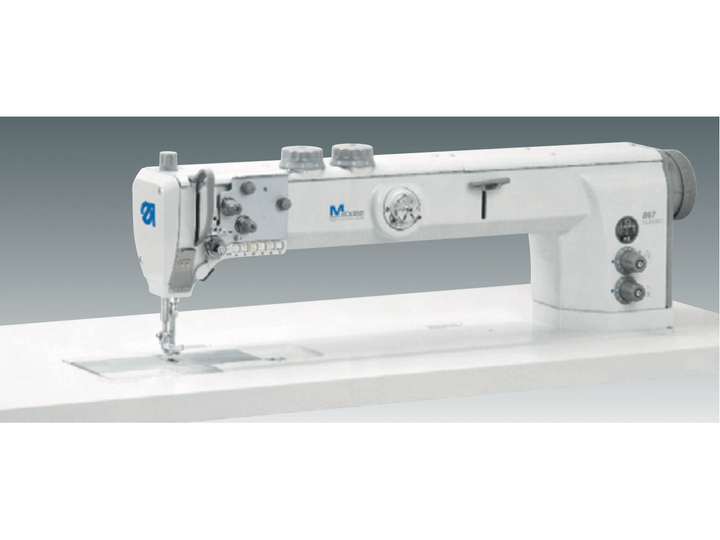

H867-70 – the powerful longarm machines from the M-TYPE series
The particularly comprehensive range of applications in the field of “medium-heavy duty sewing” often takes the used machine technology to its limits. The continuously increasing demands with respect to extreme thread and fabric thick- nesses as well as a multitude of most different materials require very robust and high-performance operating means.At the same time the working processes are expected to be executed with maximum efficiency and profitability.
This requires outstanding technical performance parameters and the possibility to use automatic functions.The subclasses of the H867-70 have especially been designed to meet these demands. The robust construction in connection with the impressing performance parameters and the excellent equipment features of the CLASSIC vari- ants make these longarm machines an ideal operating means for demanding sewing operations, especially when processing technical textilesYour advantages4 subclasses with highly efficient equipment features in the variants ECO and CLASSIC as single or twin needle long arm machine as reinforced versionThe large clearance (700 mm wide and 160 mm high) facilitates the handling of large area workpiecesPowerful and effective feeding system with bottom feed, needle feed and alternating top feedUp to 12 mm long stitches for standard seams and deco- rative topstitchingThe extremely high sewing foot lift up to 25 mm facili- tates the feeding and removing of bulky workpiecesThe sewing foot stroke up to 9 mm allows the safe climbing over differently high material pliesNew hook system with 3XL bobbin for thread sizes up to Nm 8/3 max.Max.
Click on full pdf brochure from Durkopp Adler below
Click on PDF
