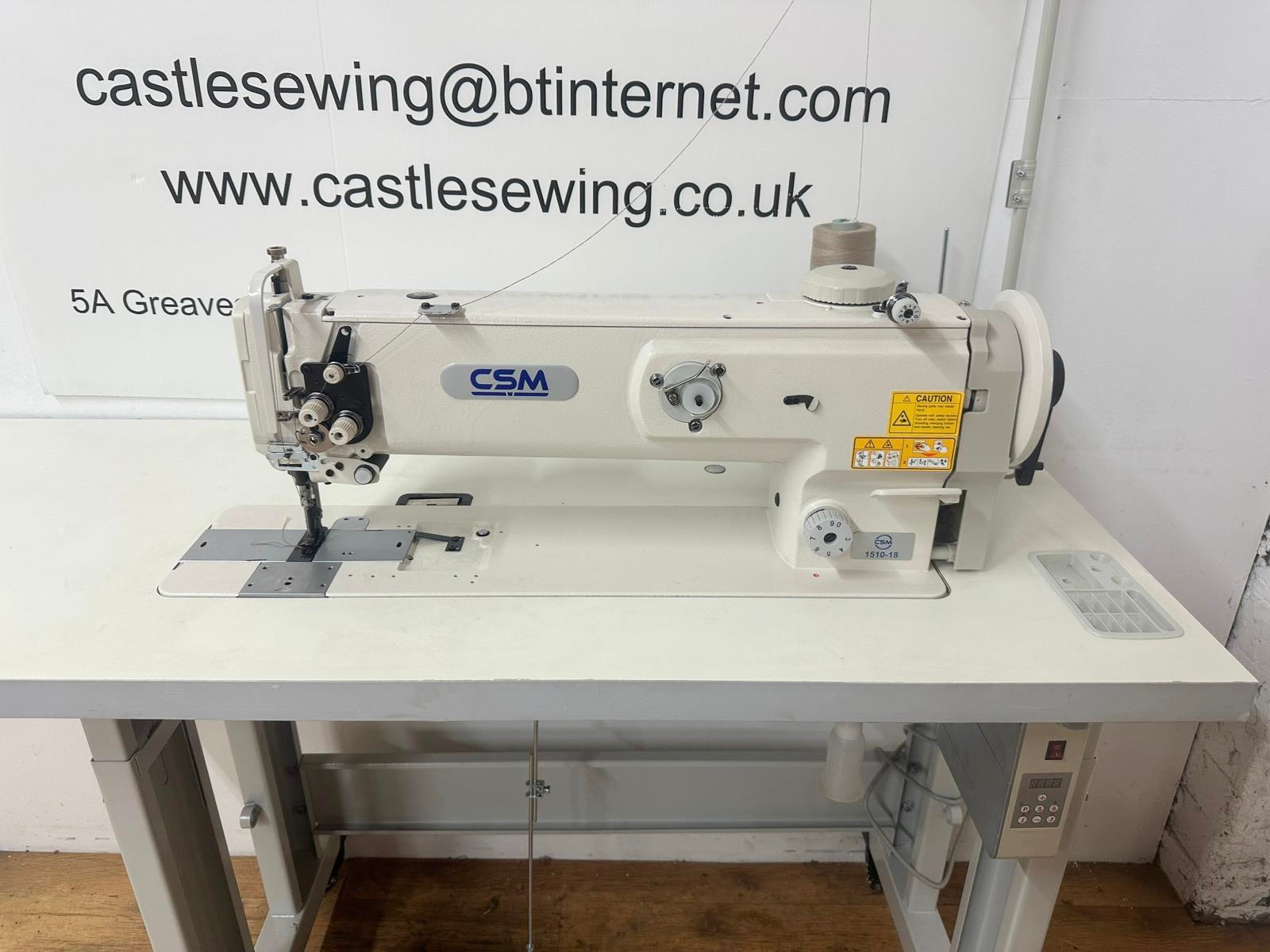

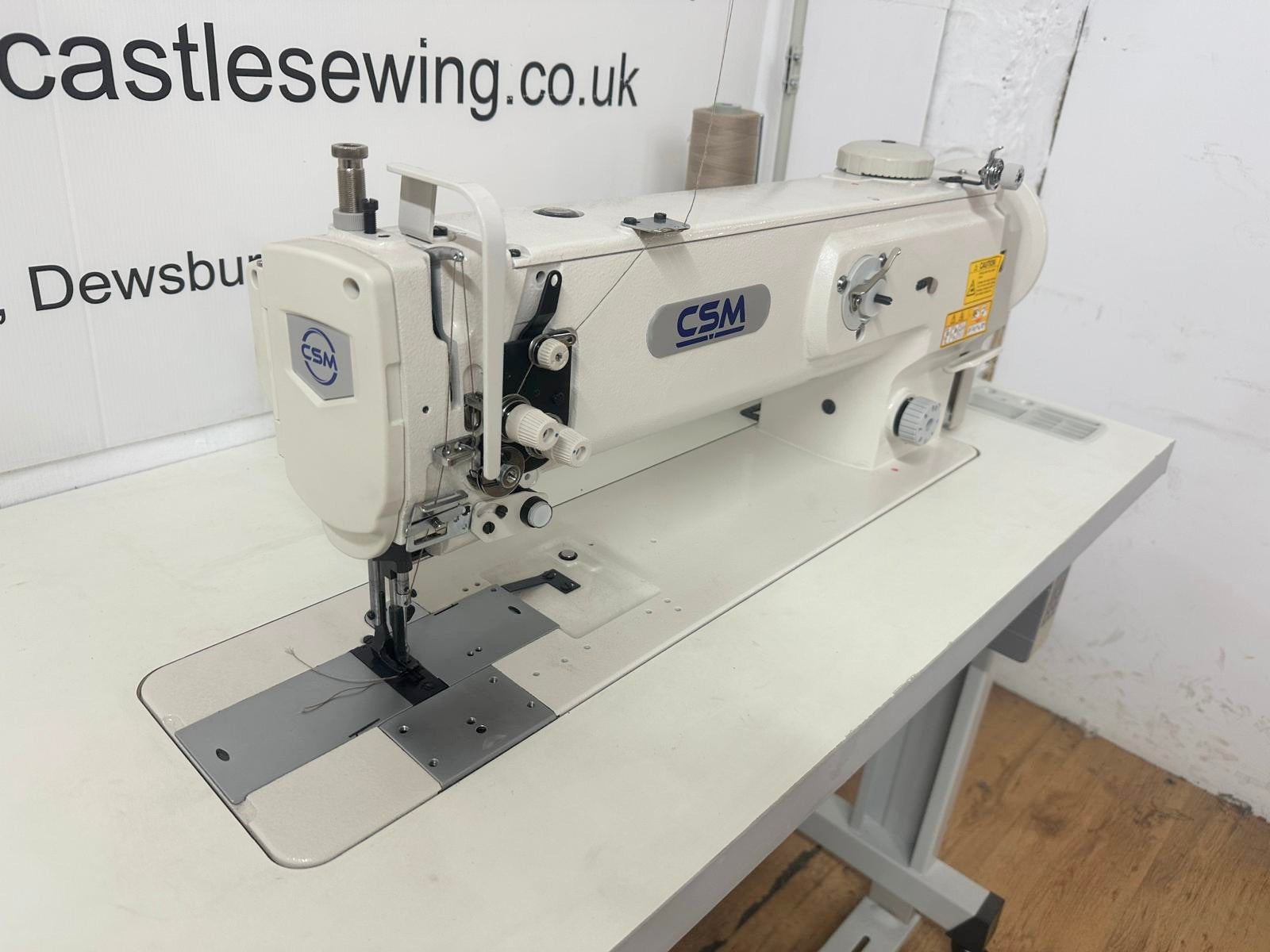

The CSM 1510 is a semi long arm 46cm 18 inches from needle to base of the arm, this single needle machine has a dual tension mechanism, with which the machine can support high tension sewing with thick thread, this means that the machine produces seams of excellent quality on a broader range of materials, extending from light to heavy weight materials 16mm presser foot lift enables easy material handling for heavy sewing and is air operated so a compressor will be needed

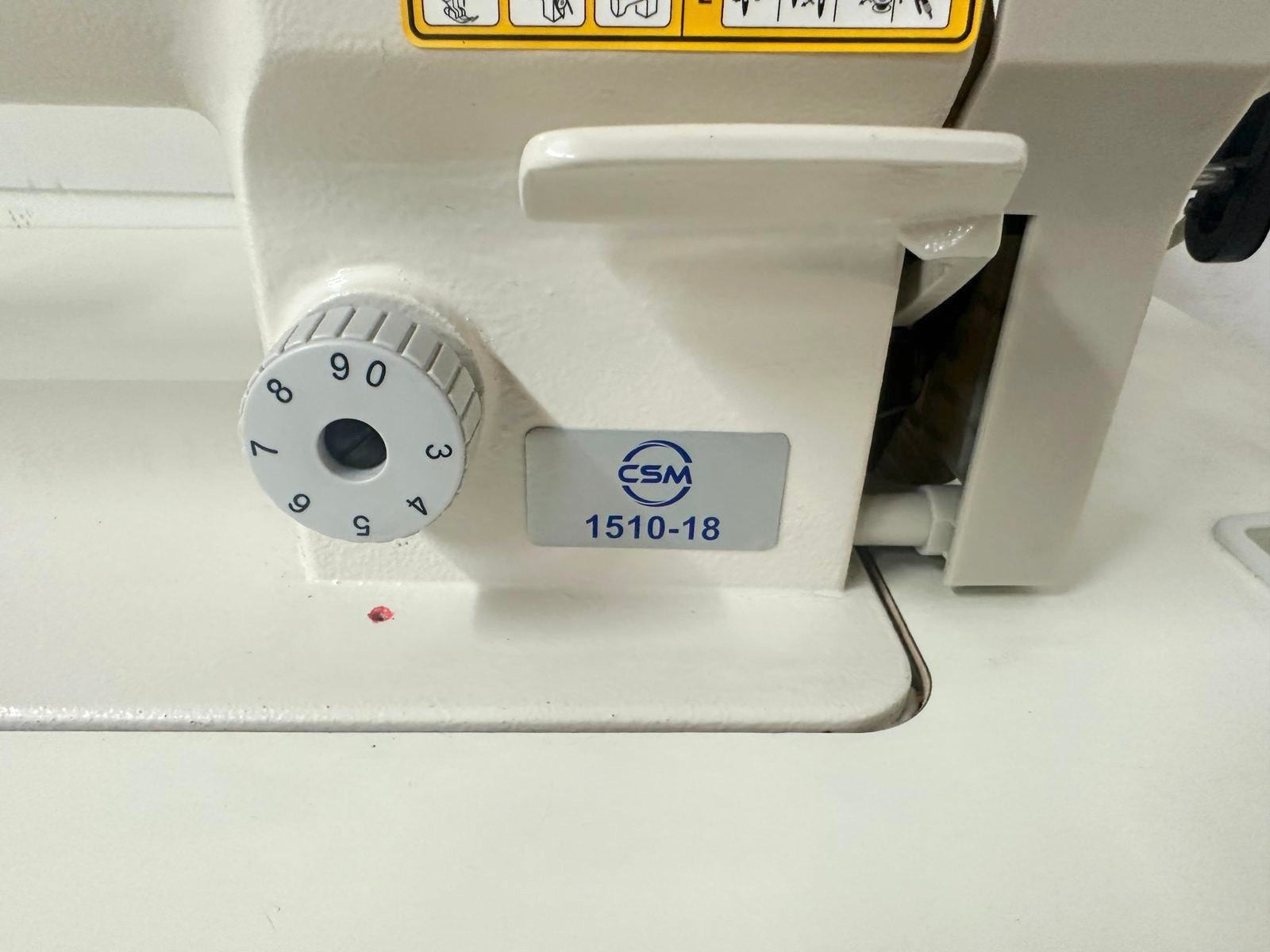

The CSM 1510L-18 maximum stitch length of 9 millimetres allows a broader range of uses, such as awnings and tarps.The stitch length is easily adjusted by the stitch dial.
The CSM 1510L-18 has a unique feature which allows the user to simply dial in the walk height of the Walking Foot. This prevents the Walking Foot from snagging on thicker material.
This machine has a self-oiling mechanism with oil tank. It also features an AIR FOOT LIFT. and needle position This machine is the 18 Inch Long Arm 46cm version suitable for sewing larger panels or wider pieces of material.
For sewing medium to heavy weight materials such as leather, vinyl, upholstery fabrics, synthetics, laminated and coated products. Suitable for sewing such products as cargo handling belts, containers, automobile upholstery, covers, sails, tents, camping trailer covers, awnings, hand bags, etc. Widely used for FURNITURE UPHOLSTERY as well as Automotive, Marine and Aviation Upholstery.
TECHNICAL SPECS: APPLICATION: For Heavy to Extra Heavy Materials MAX SEWING SPEED: 2,000 SPM NEEDLE POSITION MAX STITCH LENGTH: 9mm Forward/Reverse NEEDLE BAR STROKE: 38mm FOOT LIFT: 16mm by Air, 9mm by Hand WALKING
FOOT HEIGHT ADJUSTMENT DIAL: Standard THREAD TAKE UP: Slide Type HOOK:
Vertical Axis DOUBLE Capacity Hook NEEDLE: 135x17 THREAD: TEX 40 to TEX 270
Self Oiler Automatic Lubrication
All our machines serviced and are stitched off ready to plug in and work
You can either order this machine online and it will be shipped to you by pallet or you can come and pick it up.
Either way, this machine will be able to use straight away, no extra set-up will be needed.
Why buy from Castle Sewing Machines Ltd
A family company you can trust established 1983
Large range of new and used machines,
All our machines carry a RTB parts and labour warranty,
We only sell heavy duty machinery so our knowledge runs deep,
Only a phone call for any technical support and we will get you going regardless of problem
Showrooms for demonstrations
We sell world wide and have shipped our machinery all over Europe and the world, Australia.USA,Ascension Islands,Ghana,West Indies to name but a few
