description

The CSM Features: This machine adopts large vertical rotating hooks for thread loop catching and sliding lever for thread up taking, time belt driving,

Compound feed by needle, presser foot and feeder. The presser can be moved and adjusted to meet different sewing requests. It is also equipped with a safety clutch to prevent the machine from damage by over-duty operation.

For sewing car seats, seat belts, upholstery, safety air bags and . It can also be used to sew tents parachutes.

The CSM 1508 has a unique feature which allows the user to just dial in the walk height of the Walking Foot. This prevents the Walking Foot from snagging on bulky material.

Needle position motor the CSM 1508 has maximum stitch length of 10 millimetres allows a broader range of uses, such as awnings and tarps.The stitch length is easily adjusted by the stitch dial. Specifications:

Click PDF

Model No.:

CSM-1508

Max. Sewing Speed 2500 r.p.m
Max. Stitch length 10 mm
Needle Bar Stroke 36 mm
Presser foot Lift By Hand: 9mm, By Knee: 16 mm
Hook Vertical-Axis Double Capacity Hook
Needle DPx17 #18-#24


All our machines serviced and are stitched off ready to plug in and work

You can either order this machine online and it will be shipped to you by pallet or you can come and pick it up.
Either way, this machine will be able to use straight away, no extra set-up will be needed.

Why buy from Castle Sewing Machines Ltd
A family company you can trust established 1983
Large range of new and used machines,

All our machines carry a RTB parts and labour warranty,

We only sell heavy duty machinery so our knowledge runs deep,

Only a phone call for any technical support and we will get you going regardless of problem

Showrooms for demonstrations

We sell world wide and have shipped our machinery all over Europe and the world, Australia.USA,Ascension Islands,Ghana,West Indies to name but a few


+ Show More
Payment & Security
Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

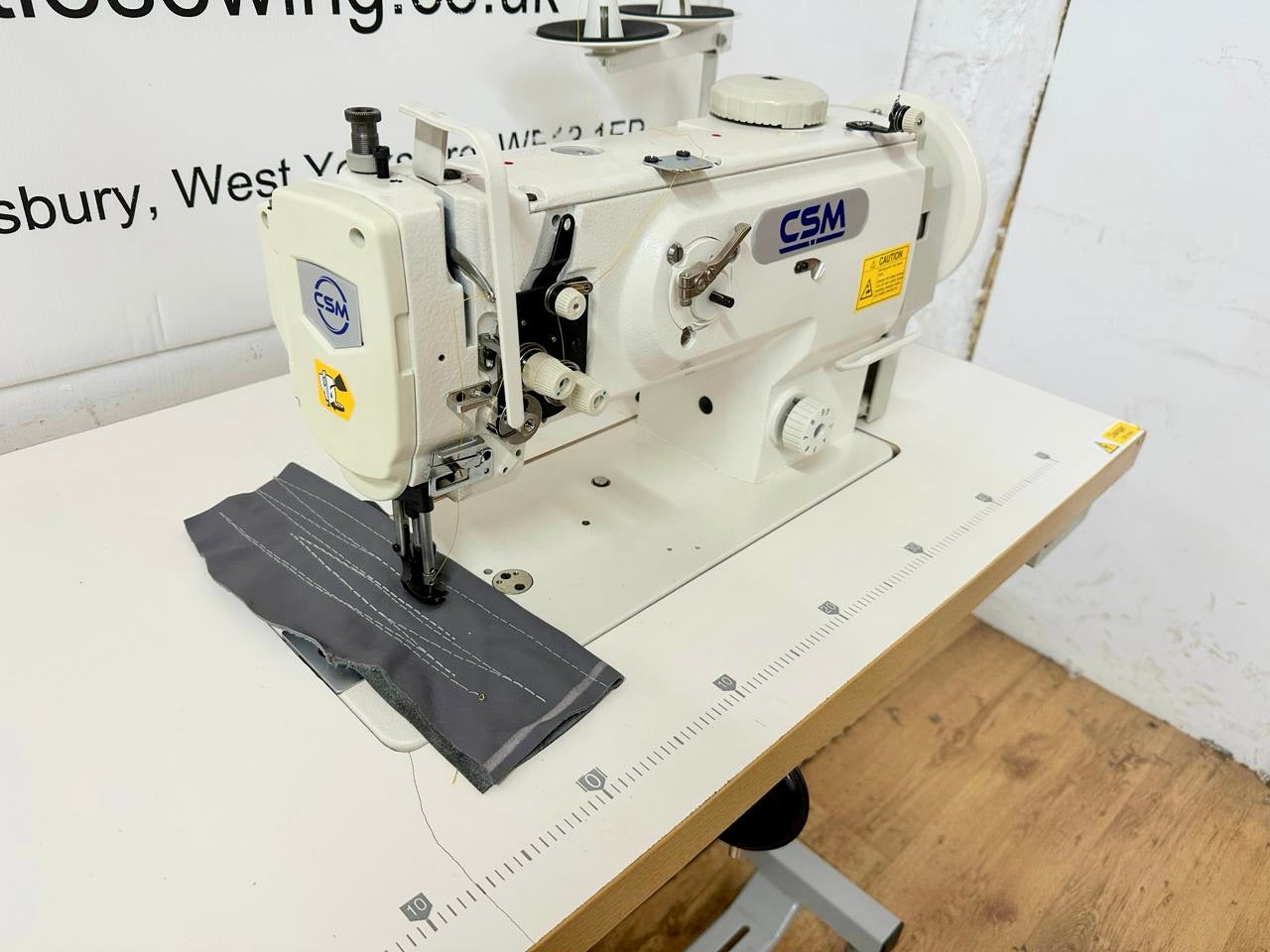

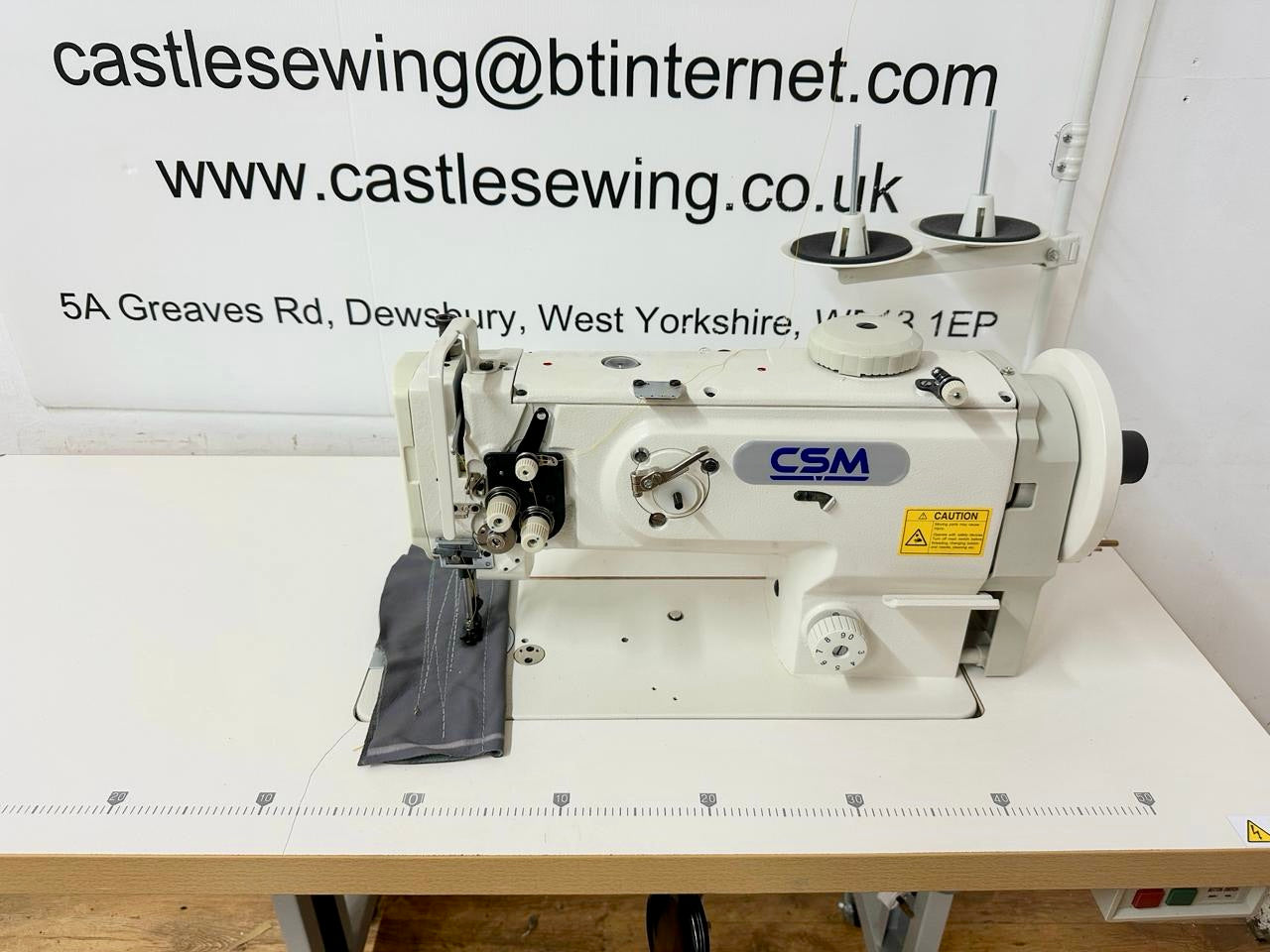

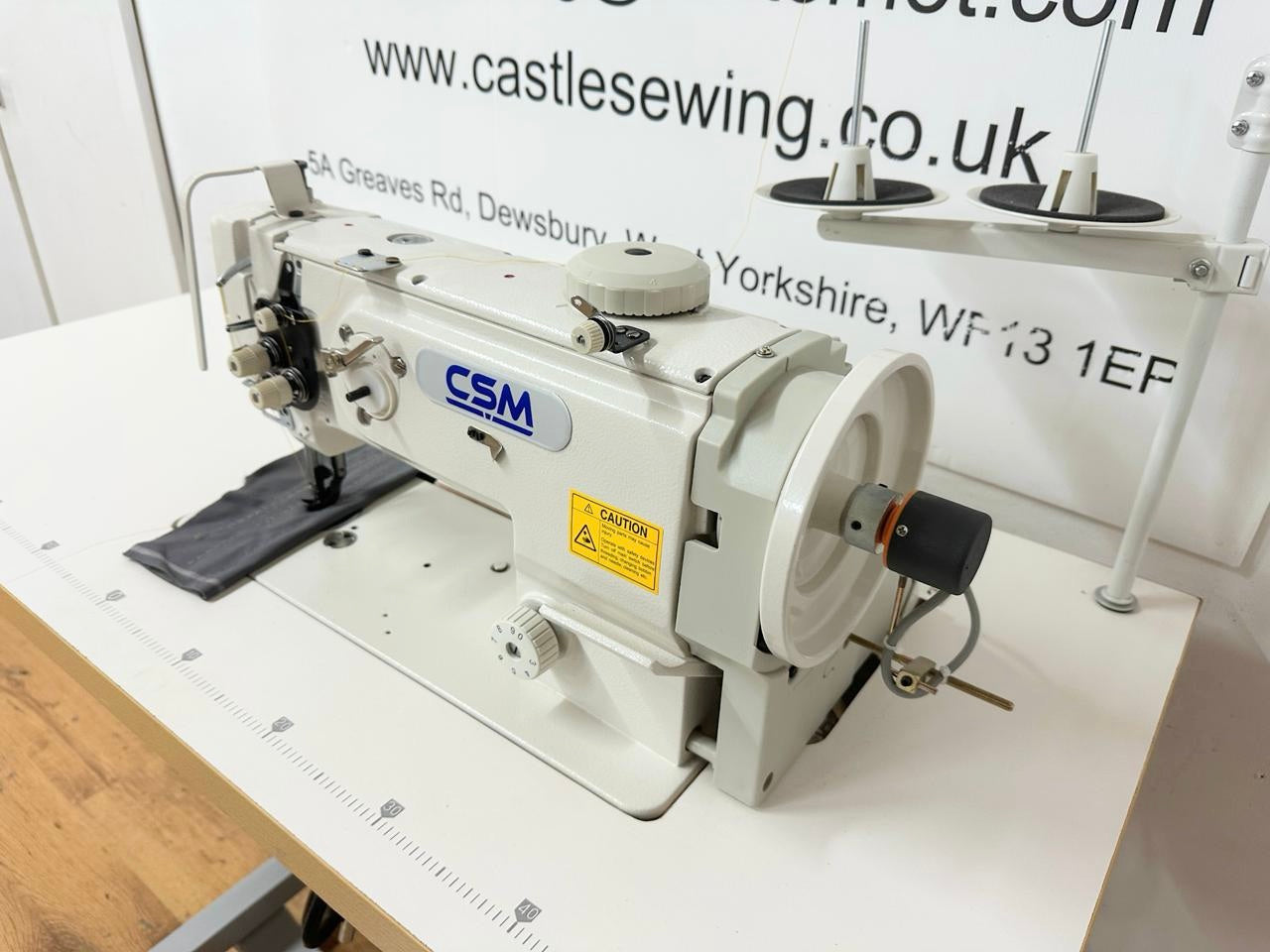

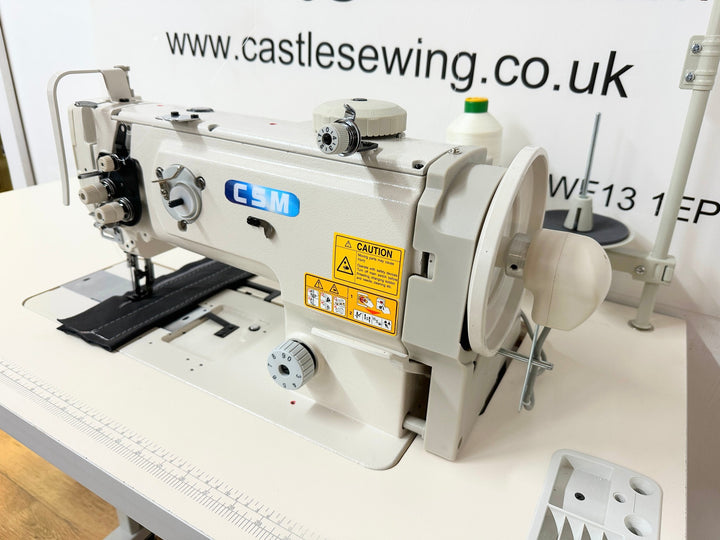

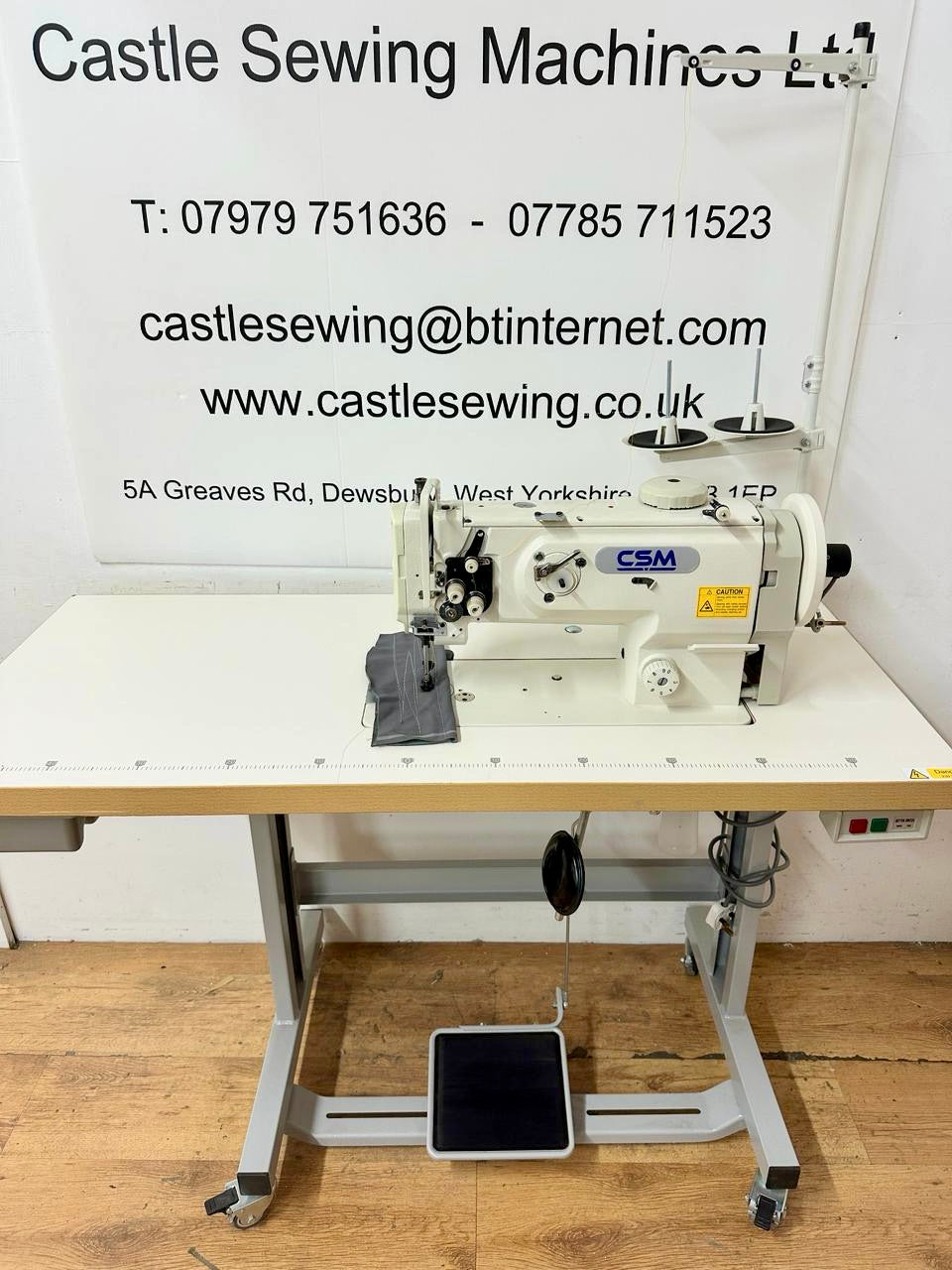

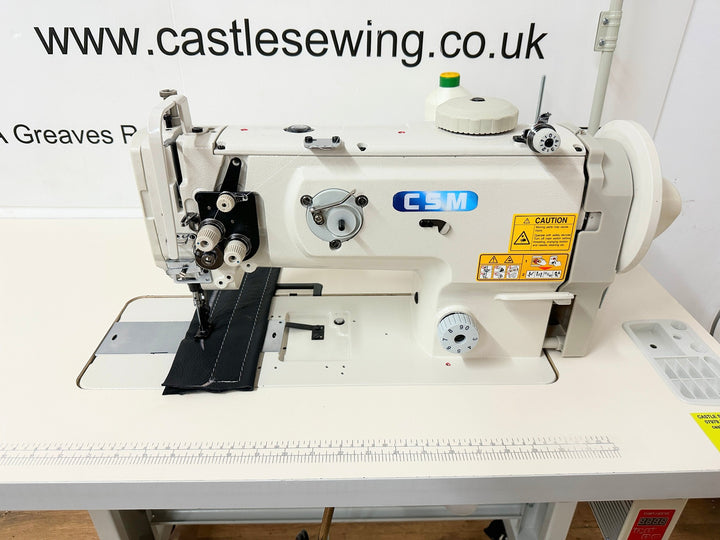

CSM 1508 Single Needle Walking Foot

sku: 1508
£1,395.00 GBP

Excl.Vat

Availability : In Stock Pre order Out of stock
Quantity:
Pay in 3 or 12 monthly instalments of .
Choose iwocaPay at checkout.
