867-70 Long Arm Walking Foot Heavy Duty new machine

Fully Automatic 867 Long Arm Walking Foot Heavy Duty Sewing Machine – a powerful, reliable workhorse designed as a high-performance alternative to the legendary Durkopp Adler 867 series.

Built for tackling thick materials like leather, canvas, upholstery, vinyl, marine fabrics, automotive interiors, tents, awnings, and technical textiles, this machine delivers consistent, high-quality seams on bulky, multi-layer workpieces without shifting or puckering.

Key Features:

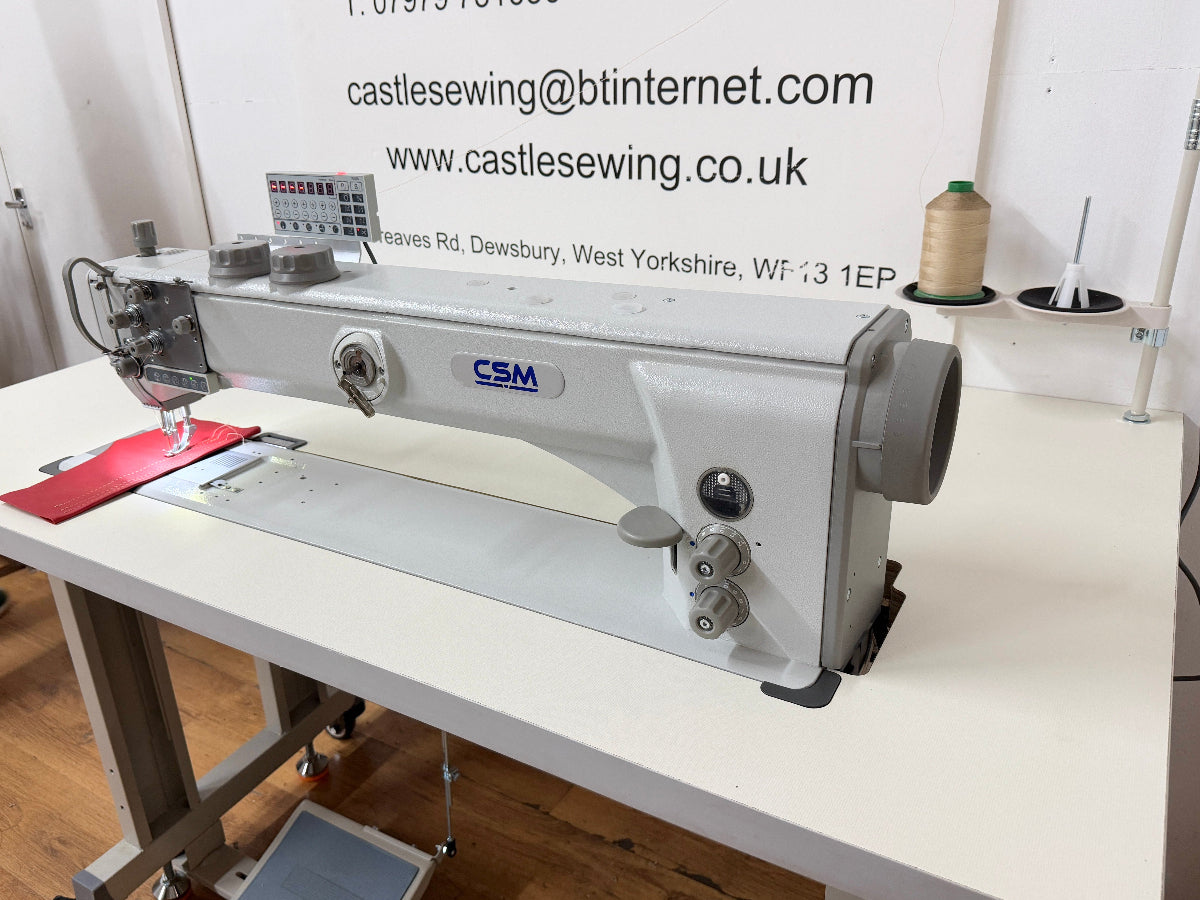

• Extra-Long Arm Design – Extended workspace with approximately 700mm (27.5 inches) clearance to the right of the needle – perfect for large-area projects like furniture upholstery, boat covers, quilts, and heavy tarps.
• Triple Feed System (Compound / Walking Foot) – Bottom feed + needle feed + alternating top walking foot ensures even, powerful material transport across varying thicknesses. No more slipping or uneven stitches!

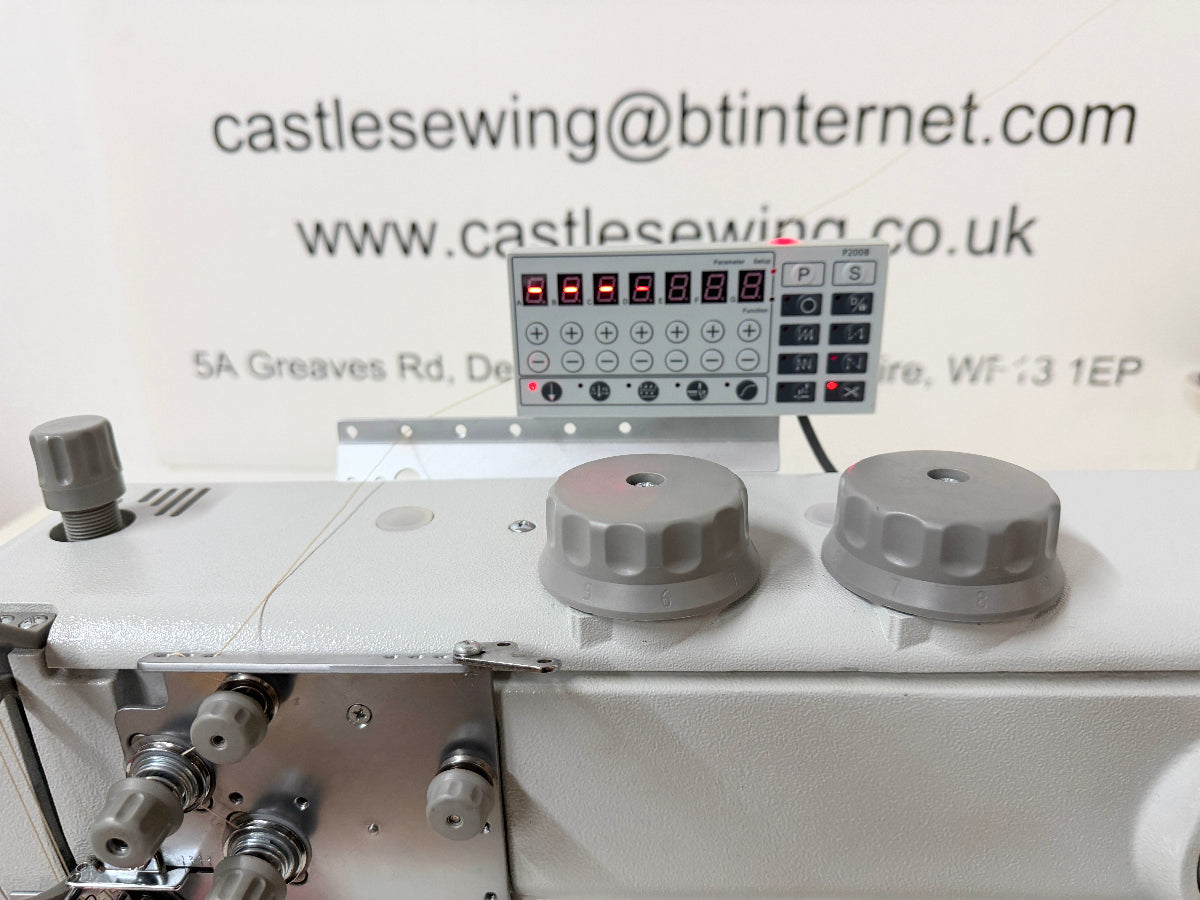

• Fully Automatic Functions – Includes automatic thread trimming, automatic backtacking (reinforcement stitches), automatic presser foot lift, and programmable options for maximum efficiency and reduced operator fatigue.
• Maximum Stitch Length – Up to 12mm for strong seams and beautiful decorative topstitching.
• High Presser Foot Lift – Up to 20-25mm clearance for easy insertion and removal of thick or bulky materials.
• Adjustable Alternating Foot Stroke – Up to 9mm for climbing over seams and multi-ply layers with ease.

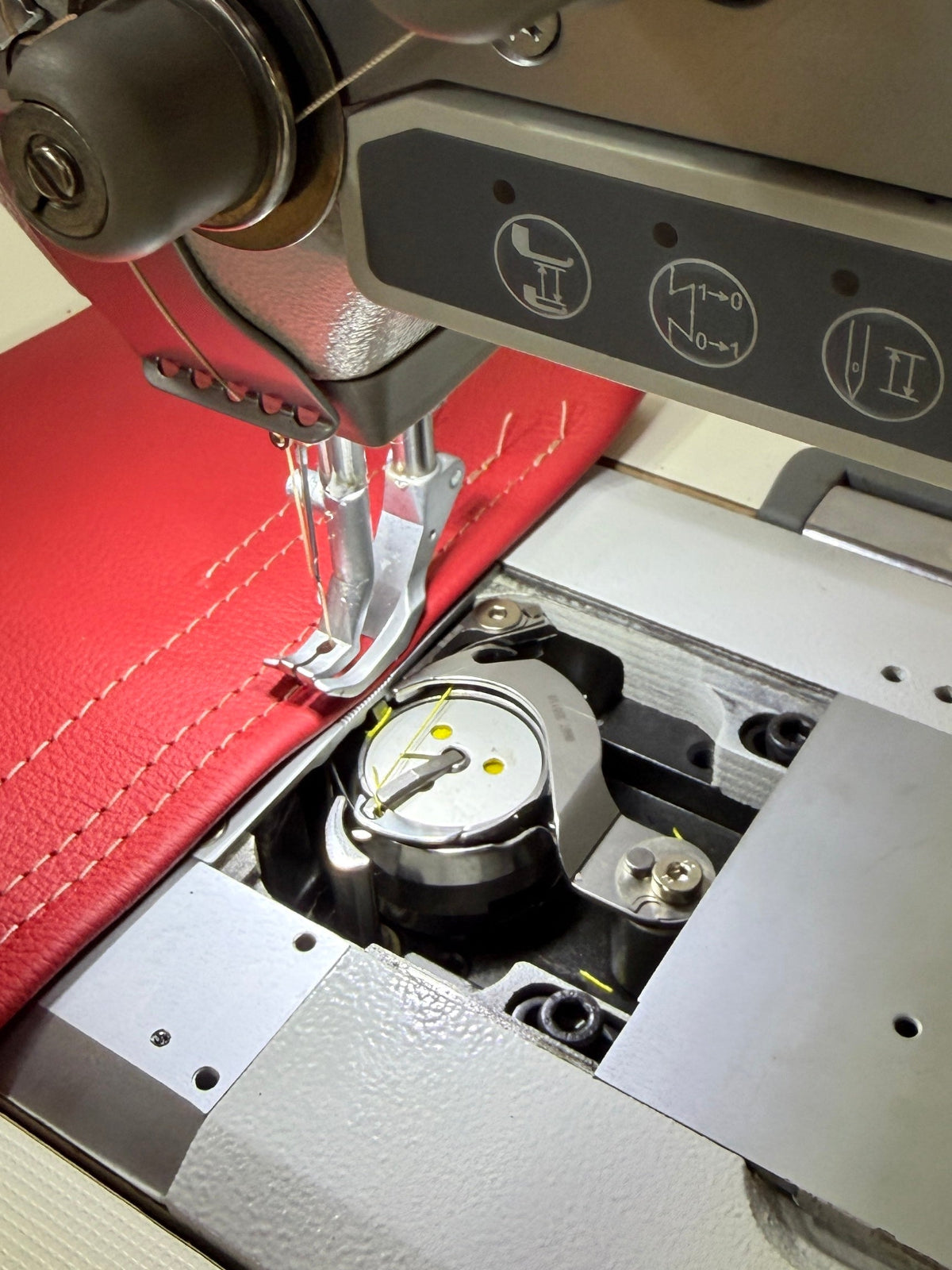

• Large Capacity Hook – Oversized vertical hook reduces bobbin changes and handles thick threads 20s bonded nylon with ease

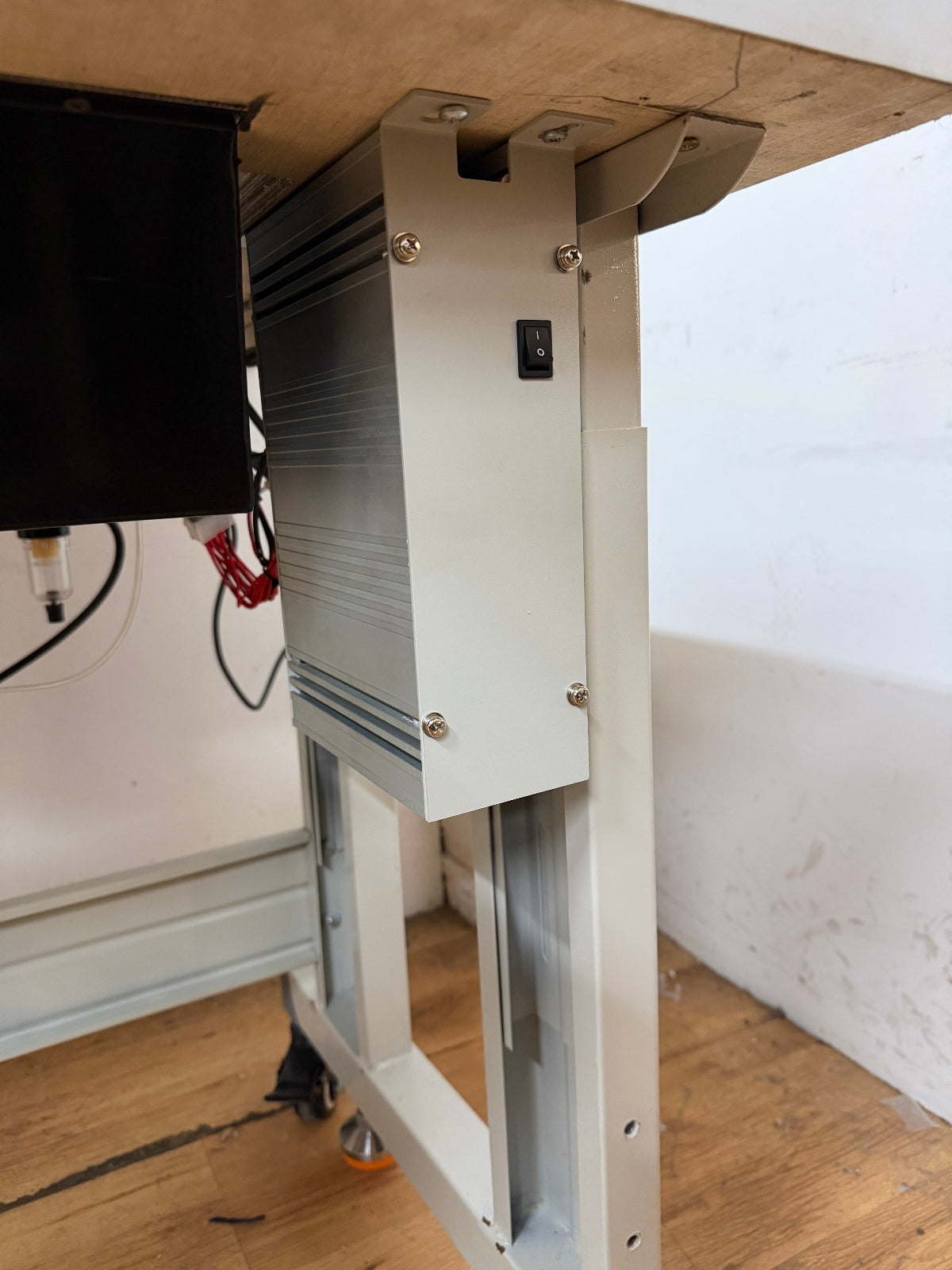

• Powerful Direct Drive Motor – Integrated energy-efficient servo motor for quiet operation, precise speed control, and excellent needle penetration on heavy materials.
• Needle System – Compatible with 134-35 / 135x17 (sizes up to #180 / #24 for heavy threads).
• Sewing Speed – Up to 3000-3400 stitches per minute (depending on material and setup).
• Built-in LED Lighting – Bright workspace illumination for precision work.

Ideal For:

• Upholstery shops
• Leather goods manufacturing
• Marine and automotive trim
• Canvas and awning production
• Heavy fabric and technical textile work

This machine offers Durkopp Adler 867-level performance and features at a fraction of the cost. It's an excellent choice for professionals upgrading from standard walking foot machines or seeking a cost-effective long-arm solution.

Package Includes:

• Complete machine head with direct drive motor
• Heavy-duty table and stand (adjustable height)
• Built-in bobbin winder

• Optional extras: extended table, pneumatic foot lift kit, or additional feet available

Note: This is a compatible / copy model inspired by the Durkopp Adler 867 M-Type series – engineered for similar heavy-duty applications with modern automatic features.

All our machines serviced and are stitched off ready to plug in and work

You can either order this machine online and it will be shipped to you by pallet or you can come and pick it up.
Either way, this machine will be able to use straight away, no extra set-up will be needed.
