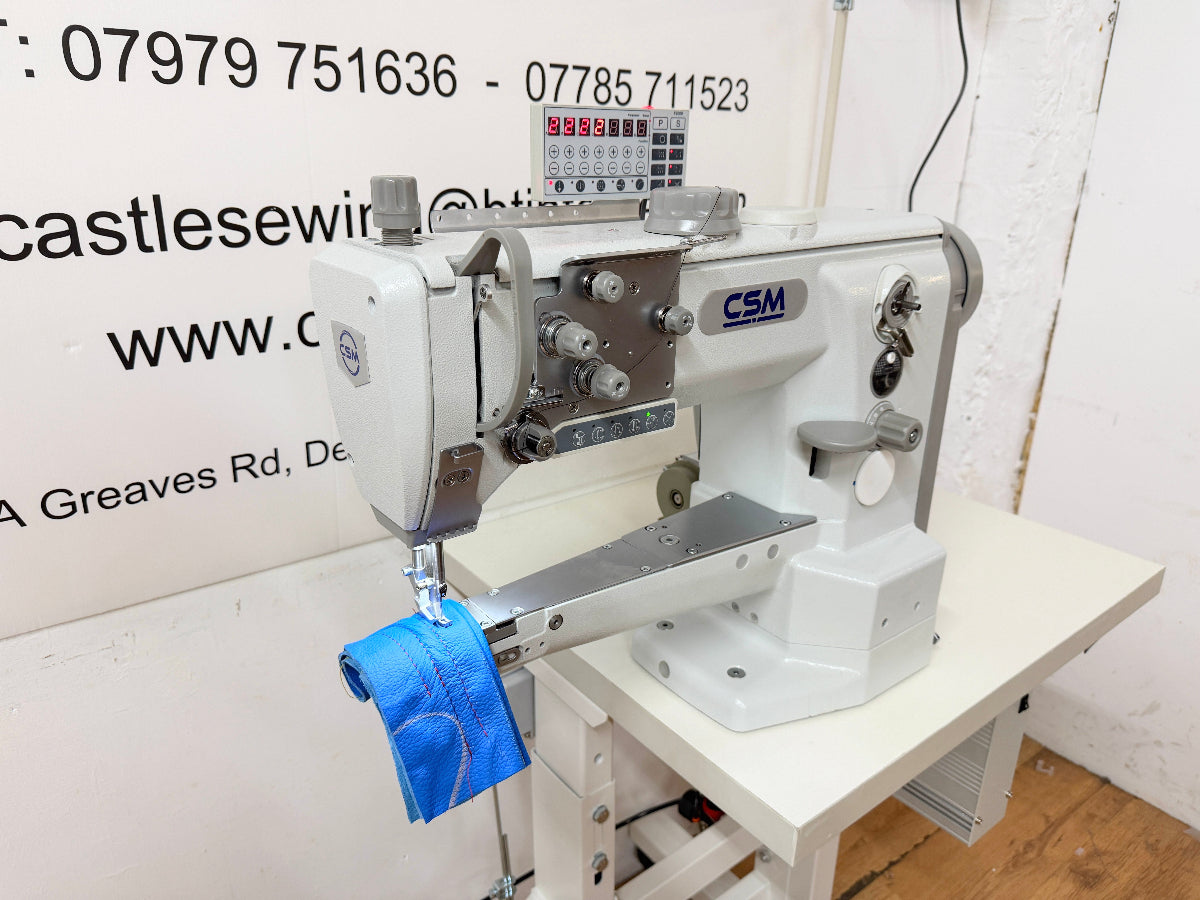

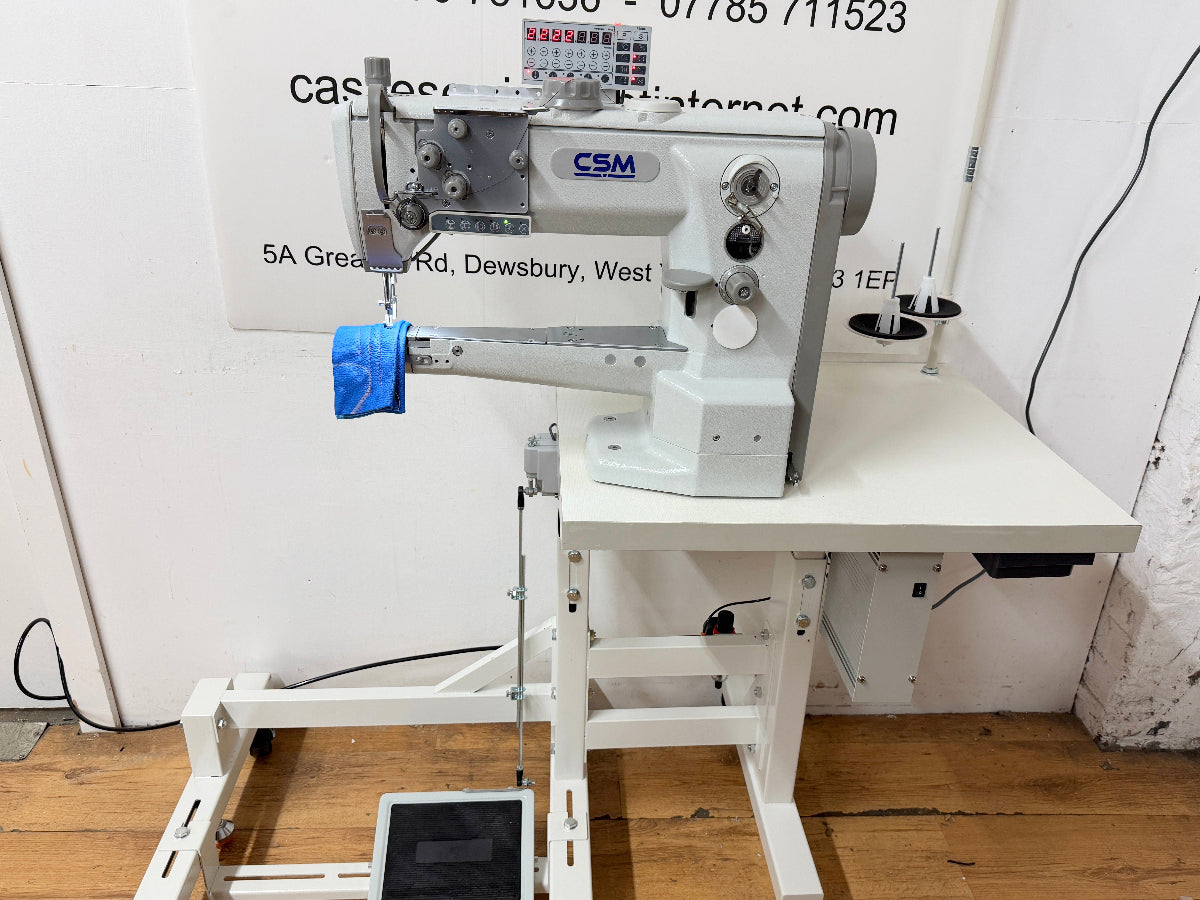

Brand New CSM 669 Cylinder Arm Walking Foot Sewing Machine

 Built for precise leather goods, upholstery, bags, belts, shoes, and more. Whether you’re stitching thick leather, binding edges with zero tension, or handling hard-to-reach seams on tubular workpieces, the CSM 669 performs exactly like the original — only more affordable.

Key Features & Specifications

• Slim 50 mm cylinder arm – perfect access to tight, curved, and tubular seams
• Full compound feed system (walking foot + needle feed + adjustable bottom feed) – flawless feeding on leather, vinyl, canvas, and multi-layer materials
• Large M-size bobbin – fewer changes, longer continuous sewing
• Max stitch length 9 mm – ideal for both structural seams and decorative topstitching
• Auto back tack
• Needle position
• Auto foot lifter
• Top stitch box
• Integrated needle light
• Automatic presser foot lift function.
• Thread Tension Release or Tension Opening button.

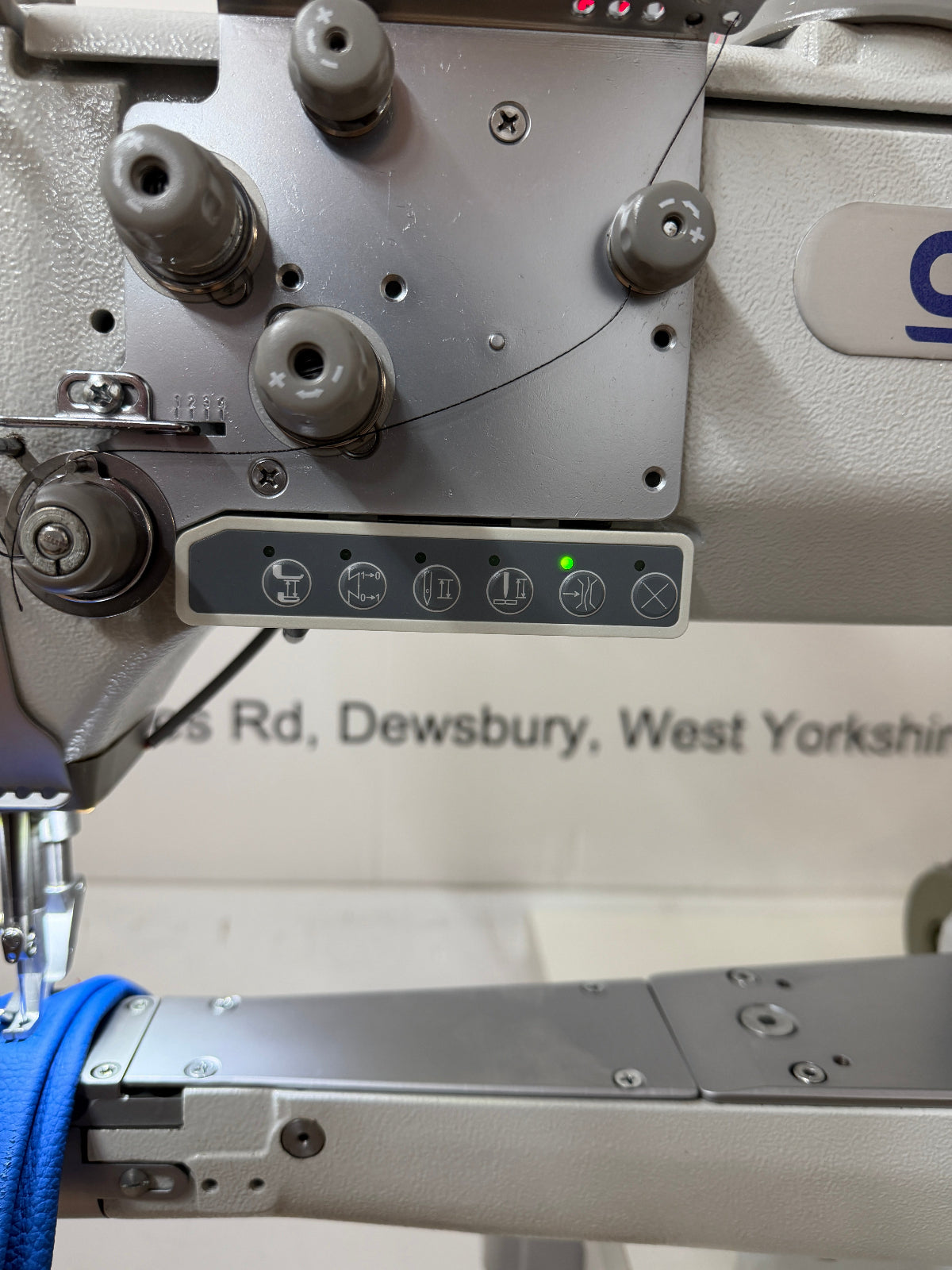

• Needle Position Toggle: When you press this button while the machine is stopped, it moves the needle to the opposite position. If the needle is currently Up (1), it will go Down (0) into the fabric. If it is Down (0), it will move to the Up (1) position. This is why the icon shows arrows pointing from 1 to 0 and 0 to 1.
• Sewing speed up to 3,000 SPM – high productivity with rock-solid stitch quality
• Presser foot lift up to 20 mm and alternating foot stroke up to 9 mm – easily handles thick cross seams and bulky workpieces
• Knurled wheel for adjusting foot height
• Safety clutch, adjustable hook lubrication, and servo motor drive – smooth, quiet operation and long-term reliability

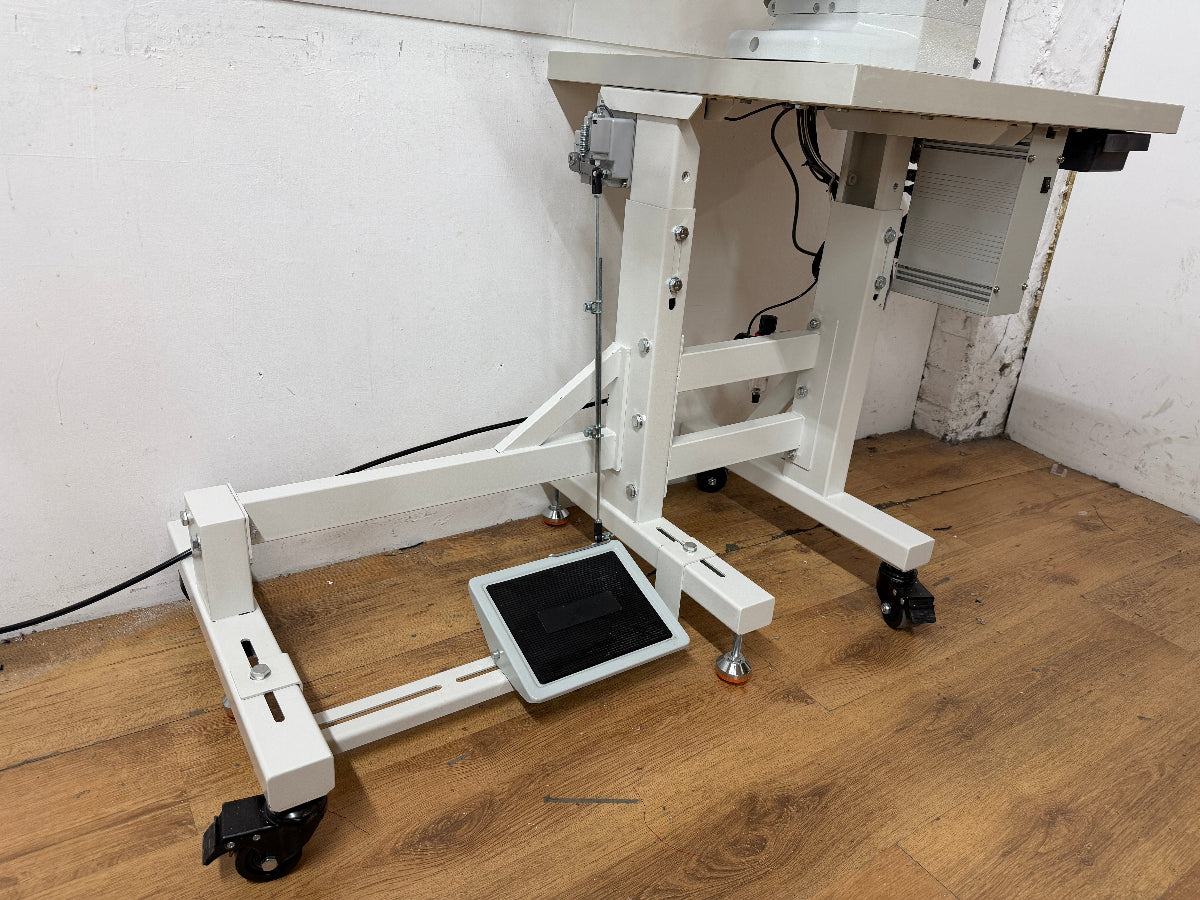

• High quality heavy duty wheeled stand

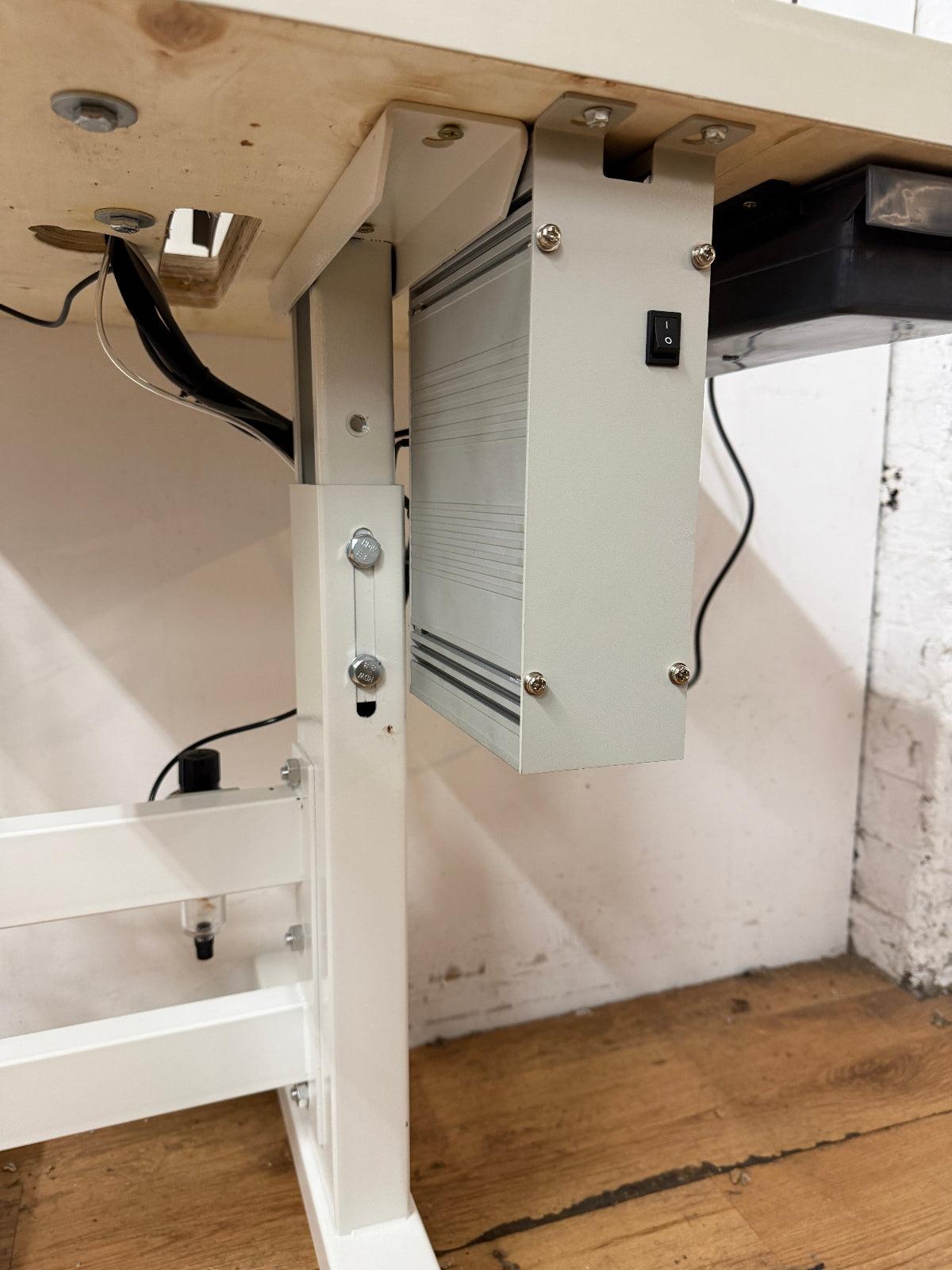

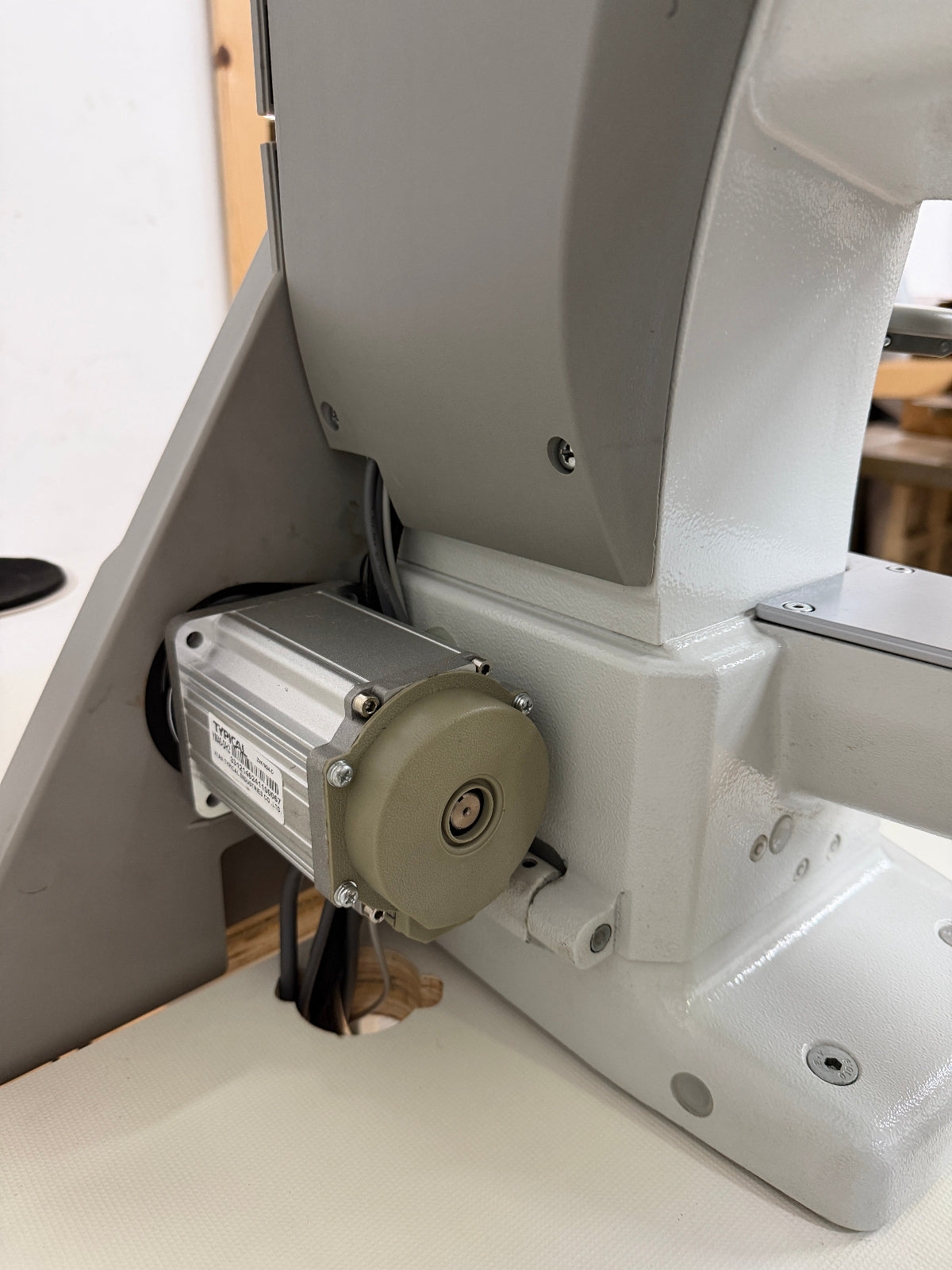

• Integrated 240v Dac type motor so no sewing belt, direct drive system enabling more torque and control
• Needle system 134x35 Size 100-150
• Thread upto 20s bonded nylon
• Powered by a Dac style 240v single phase Efka integrated motor so no sewing belt, direct drive gives more control and torque

Perfect For

• Leather bags, suitcases & handbags
• Belts, chaps & small leather goods
• Upholstery, automotive interiors & marine seating
• Shoes, boots & tubular leather components
• Binding, assembly & decorative stitching

This machine offers Durkopp Adler 669-level performance and features at a fraction of the cost. It's an excellent choice for professionals upgrading from standard walking foot machines

Package Includes:

• Complete machine head with direct drive motor
• Heavy-duty table and stand (adjustable height)
• Built-in bobbin winder

• Optional extras: extended table, pneumatic foot lift kit, or additional feet available

Note: This is a compatible / copy model inspired by the Durkopp Adler 867 M-Type series – engineered for similar heavy-duty applications with modern automatic features.

All our machines serviced and are stitched off ready to plug in and work

You can either order this machine online and it will be shipped to you by pallet or you can come and pick it up.
Either way, this machine will be able to use straight away, no extra set-up will be needed.
