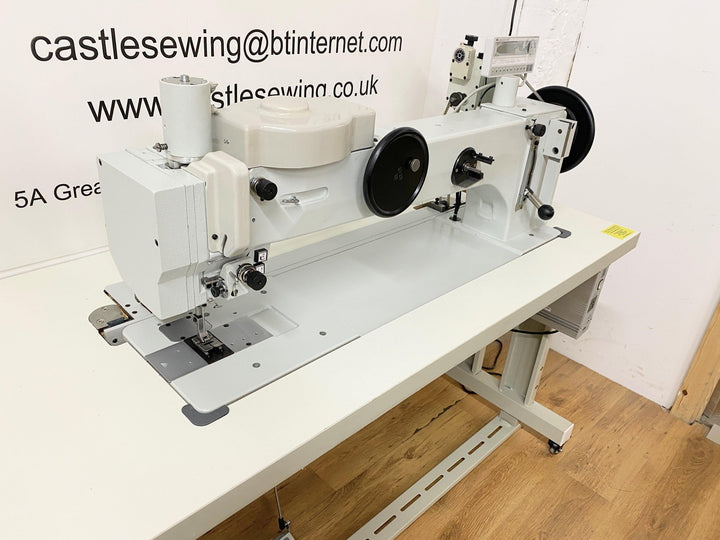

The CSM 366-76-12-HM sail sewing machine gives a large working space underarm, eliminating the effort and time needed to fold and roll wide sections of sailcloth and cover fabrics during sewing operations.

The extra-heavy-weight zig-zag sail-making machine standard, supplied with 4 cams for straight stitch, 1-step (2-points), 2-step (3-points), and 3-step (4-points) zigzag, covers all demands of the modern sail-making industry. It employs a parallel vertical needle bar motion for extremely strong needle penetration force and can easily sew sturdy webbing reinforcement and extra-heavy sail corner patches.

This specialised sailmaker sewing machine is capable of powering its needle through 20mm of Dacron, Kevlar, Webbing, Canvas, and leather. The large shuttle hook and bobbin capacity reduces the number of bobbin changes and offers high efficiency in sewing sails, tents, and tarpaulins.

Using extra-thick thread up to size 10/3 The heavy-duty top and bottom feed and the puller feed behind the pressure foot with a speed-adjustable gearbox for the ultimate pulling power help sailmakers create a smooth, even stitch on large sails. The basic mechanics (shuttle hook, adjustments, and timing) are the same with the Adler 366 and Adler 266, therefore it is easier for the sail lofts already to work with these Durkopp Adler sail sewing machines (interchangeable with the Durkopp Adler 366-76-12-HM);

This heavy-duty zigzag sailmaker sewing machine is completely assembled and serviced, ready to operate out of the box. The machine is supplied with a New German DC Efka motor the most powerful on the market, needle position, and air foot lifter, so you have all the power you need and more.


Max. Sewing Speed:

700 rpm

Hook Type:

Koban KSP7-31 or Hirose HSH-7-3

Presser Foot Lift:


Needle bar stroke:

66 mm

Needle System:

794 # 160 – 250

Max. Thread size


Stitch Length:


Bobbin size:

Outside Dia. 24mm, Height 30.5mm

Zigzag width:

12 mm

Thread take up lever:

Cam type

Working space:

785mm (length) x 270mm( High)

Recommended motor:

Minimum 0.75 kW

Packing size:

1835X775X1430MM, 360KGS

Tariff code (HS code):
